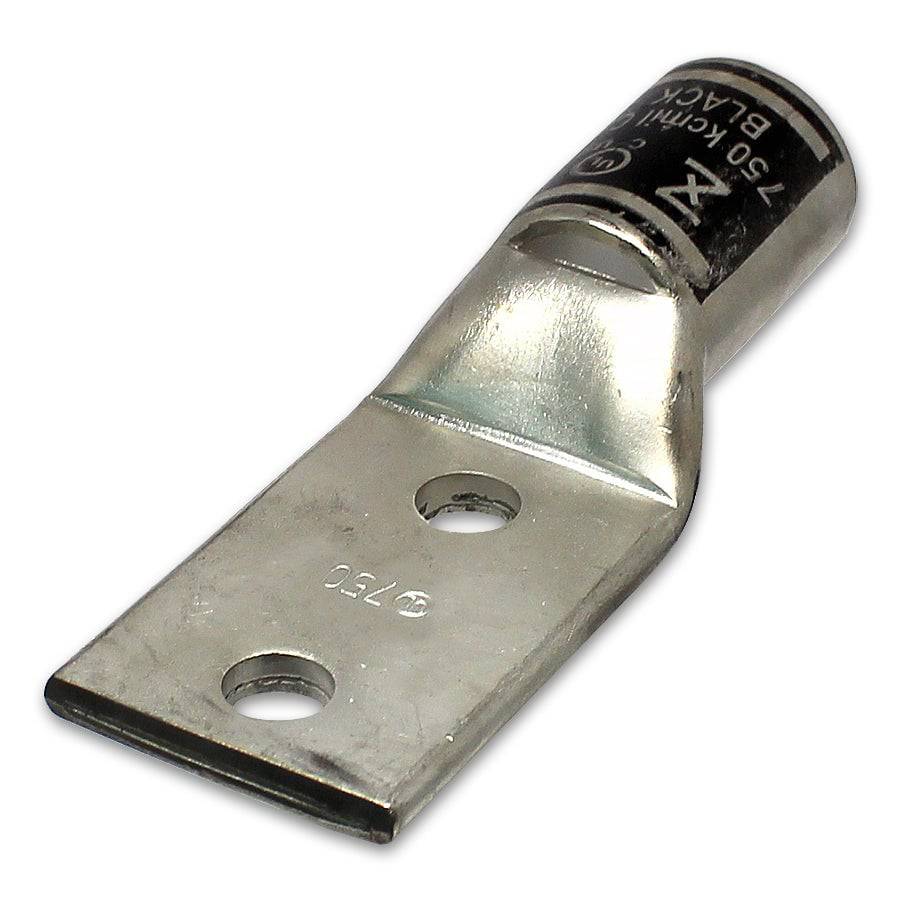

ST75012 - 750MCM Compression Lug - 1/2" Stud Size
Precio original
$23.98
-
Precio original
$23.98
Precio original
$23.98
$23.98
-
$23.98
Precio actual
$23.98
SKU ST75012
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 750MCM |
| Color: | Black |
| L: | 115.5mm (4.55") |
| L1: | 71.1mm (2.80") |
| D: | 48.3mm (1.90") |
| D1: | 33.0mm (1.30") |
| D2: | 26.8mm (1.05") |
| B: | 44.4mm (1.75") |
| E: | 12.9mm (0.51") |
| F: | 6.0mm (0.24") |
| L2: | 44.4mm (1.75") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 1/2" |
| Termperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 475 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
