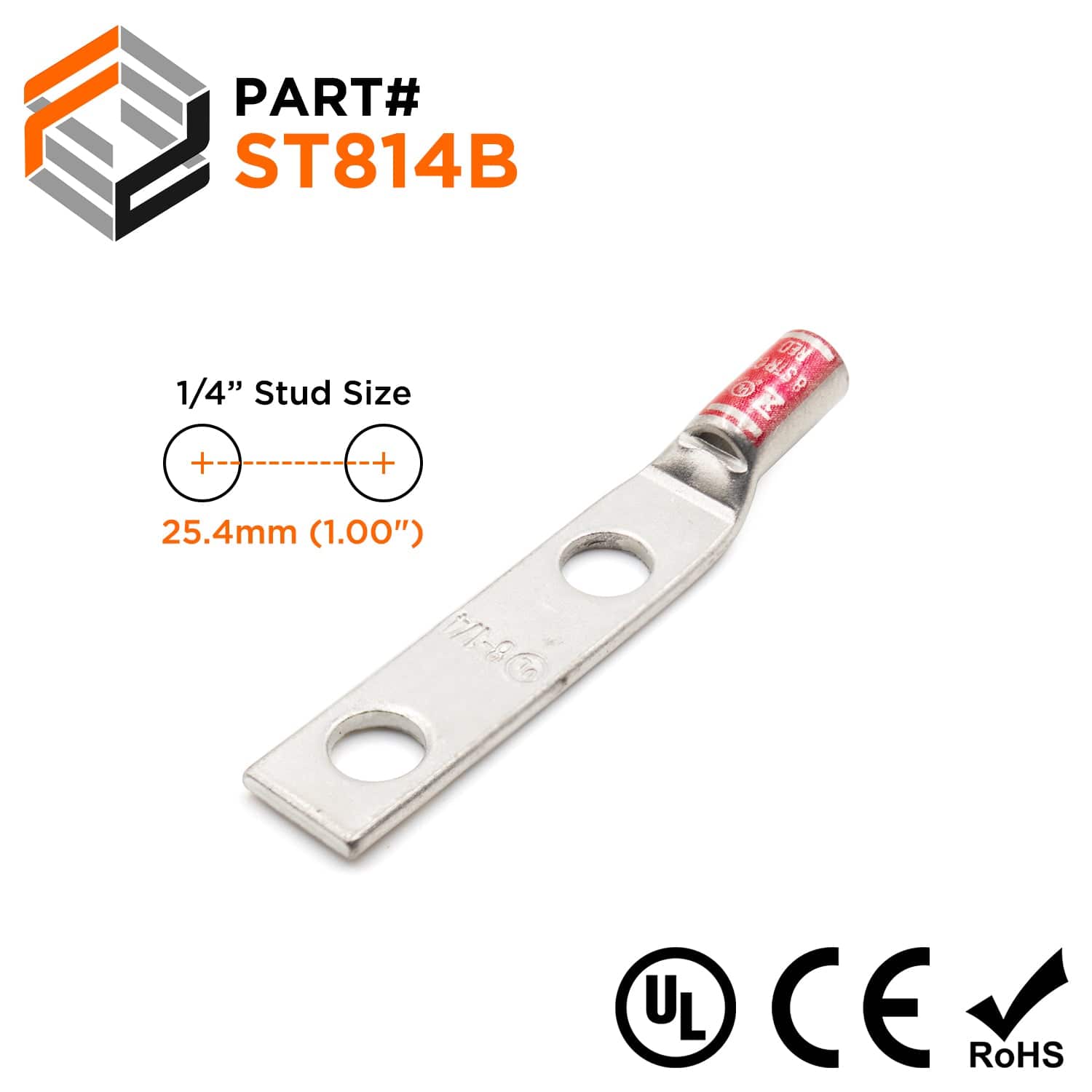

ST814B - 8AWG Compression Lug - 1/4" Stud Size
Precio original
$0.95
-
Precio original
$0.95
Precio original
$0.95
$0.95
-
$0.95
Precio actual
$0.95
SKU ST814B
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | 1/4" Stud |
| Color: | Red |
| L: | 59.69mm (2.35") |
| L1: | 43.81mm (1.725") |
| L2: | 25.4mm (1.00") |
| D: | 11.2mm (0.44") |
| D1: | 7.1mm (0.28") |
| D2: | 4.8mm (0.19") |
| B: | 12.7mm (0.50") |
| E: | 7.1mm (0.28") |
| F: | 1.9mm (0.75") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 50A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
