AD05005 - 22 AWG (5mm Pin) Insulated Ferrules - White - Ferrules Direct

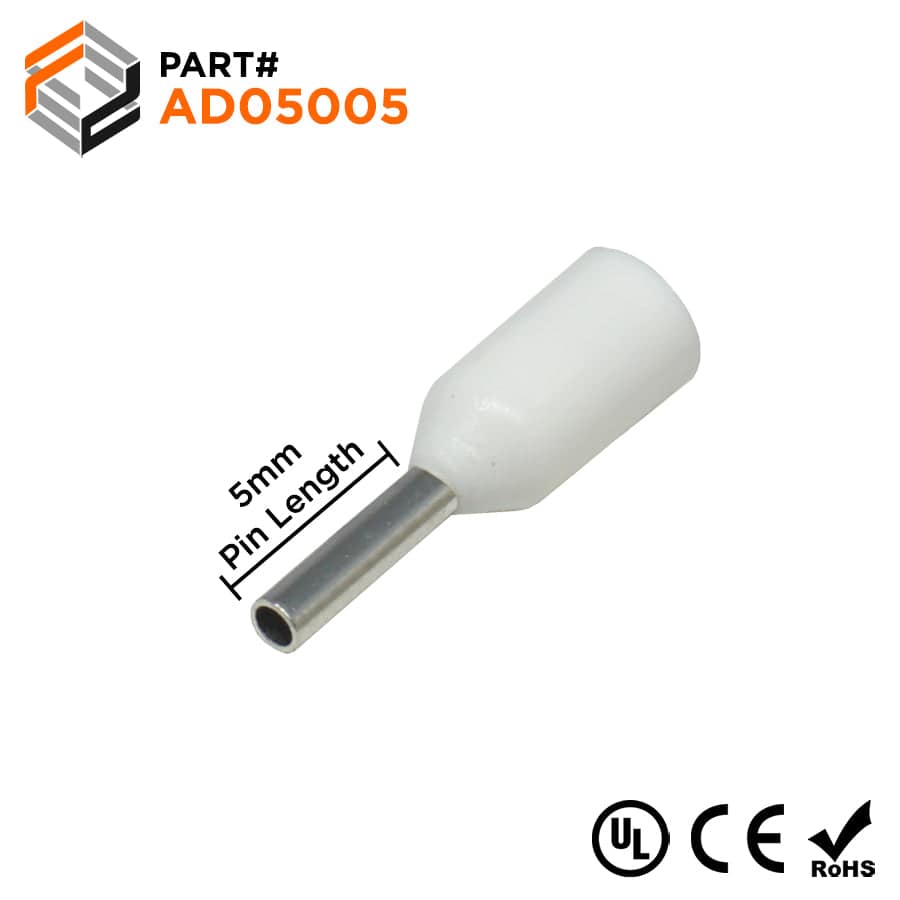

AD05005 - 22 AWG (5mm Pin) Insulated Ferrules - White

$8.72 - $8.72
$8.72
$8.72 - $8.72
$8.72
SKU AD05005
Availability:
in stock, ready to be shipped
Pack Quantity: 500 Pieces

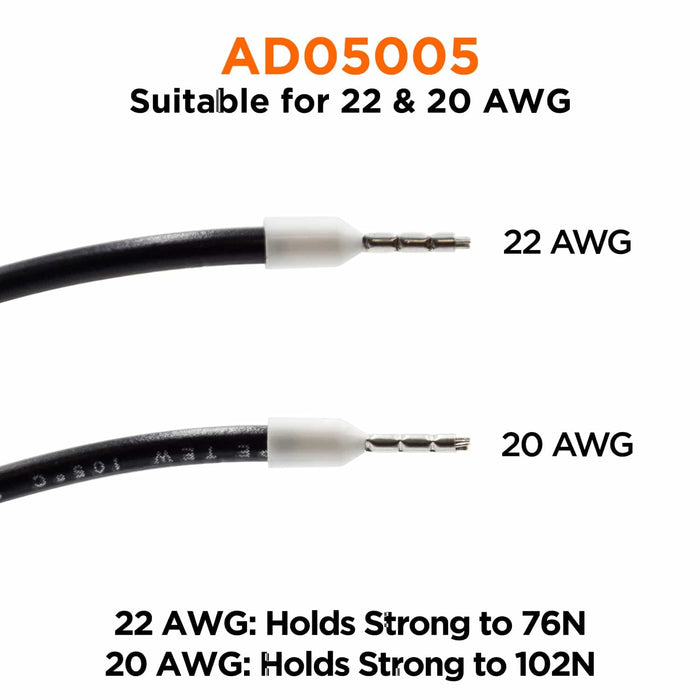

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 22 AWG
Color: White
L1: 11.0mm (0.433")
L2: 5.0mm (0.197")
D: 1.3mm (0.051")
D1: 1.0mm (0.039")
D2: 2.6mm (0.102")
UL Approved: Yes
CE Certfied: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 12A

Technical Drawing:


Cross References

None:

Documents

Click to view data sheet

Videos

Check out our YouTube channel!
