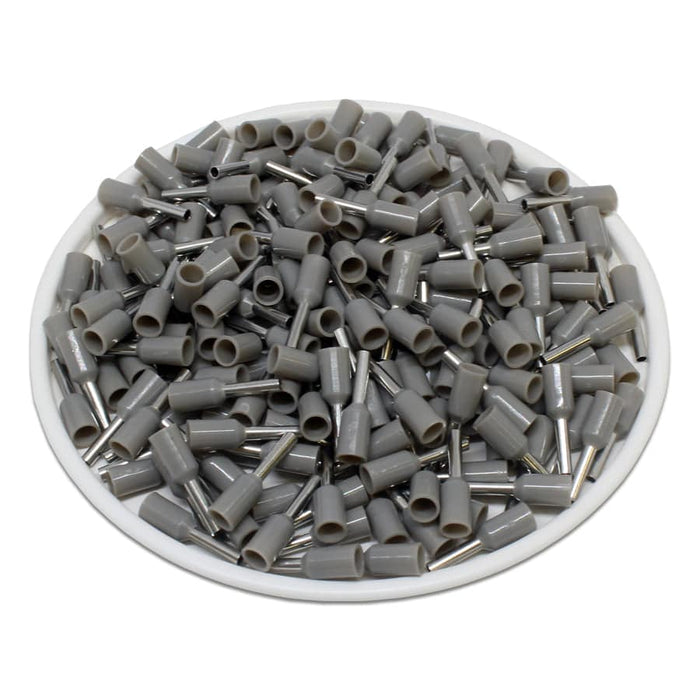

AD07506 - 20 AWG (6mm Pin) Insulated Ferrules - Gray
Original price
$7.22
-
Original price
$7.22
Original price
$7.22
$7.22
-
$7.22
Current price
$7.22
SKU AD07506
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Altech Corp: 2866.0 FID1806GR
American Electrical: 1161075
Greenlee: 470/6
McMaster-Carr: 7950K84 - 7950K14
Panduit: FSD76-6-D
Phoenix Contact: 3200690
Power Phase - Fastenal: 0749603
Thomas Betts: F2023
Tyco AMP: 966 067-4
WAGO: 216-222
Weidmuller: 9019030000
ZF: V3AE0040
Dimensions & Features:
| Wire Size: | 20 AWG |
| Color: | Gray |
| L1: | 12.4mm (0.490") |
| L2: | 6.0mm (0.236") |
| D: | 1.57mm (0.062") |
| D1: | 1.2mm (0.047") |
| D2: | 2.8mm (0.110") |
| UL Approved: | Yes |
| CE Certfied: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 17A |
| Material: | Tin-Plated Copper |

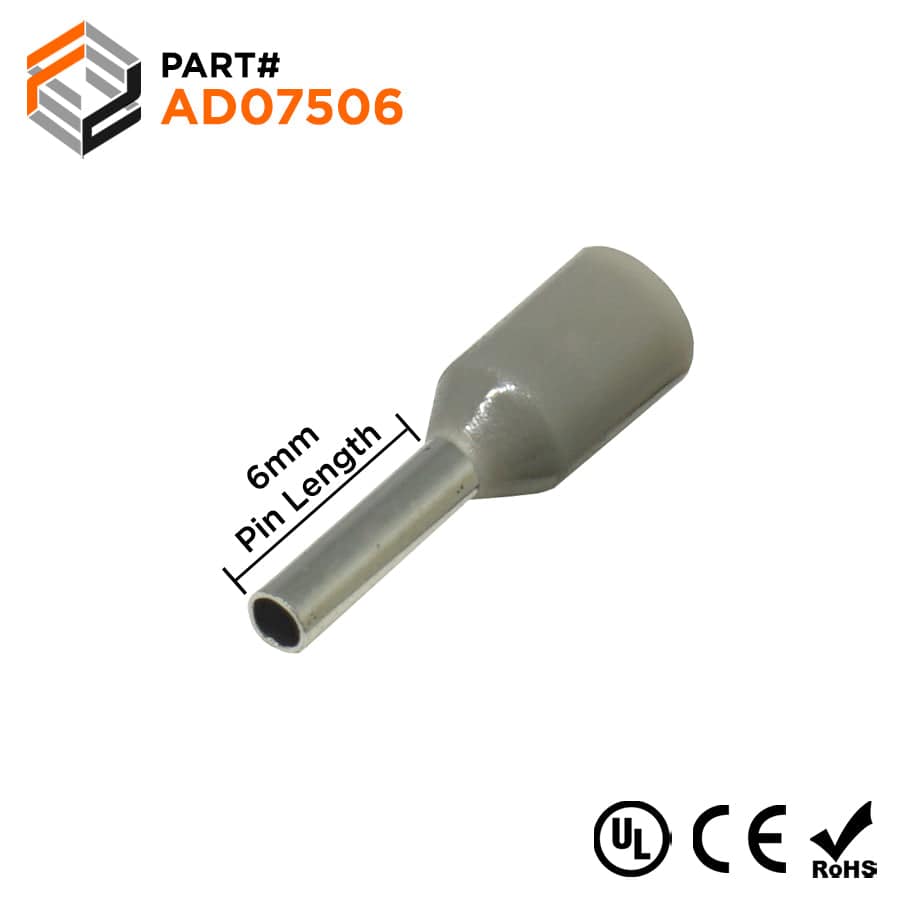

Technical Drawing:
Cross References
ABB: XUSD01837Altech Corp: 2866.0 FID1806GR
American Electrical: 1161075
Greenlee: 470/6
McMaster-Carr: 7950K84 - 7950K14
Panduit: FSD76-6-D
Phoenix Contact: 3200690
Power Phase - Fastenal: 0749603
Thomas Betts: F2023
Tyco AMP: 966 067-4
WAGO: 216-222
Weidmuller: 9019030000
ZF: V3AE0040
