20 AWG (8mm Pin) Insulated Ferrules - Gray

$6.99
SKU AD07508
Piece Quantity

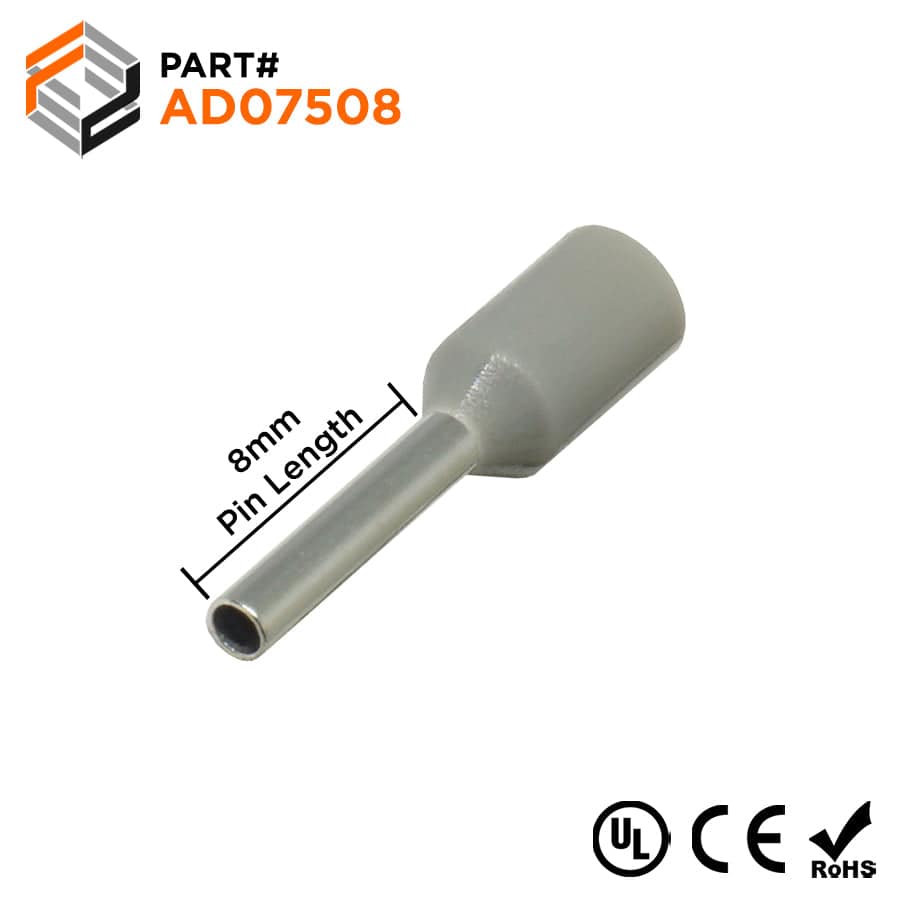

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 20 AWG
Color: Gray
L1: 14.0mm (0.551")
L2: 8.0mm (0.315")
D: 1.57mm (0.062")
D1: 1.2mm (0.047")
D2: 2.8mm (0.110")
UL Approved: Yes
CE Certfied: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 17A
Material: Tin-Plated Copper

Technical Drawing:


Cross References

ABB: 30445501
Altech Corp: 2867.0 FID1808GR
American Electrical: 1181075
AUTOMATION DIRECT: BM-00602
DigiKey: 277-2186-ND
Eclipse: 701-111
Elecdirect: FER-20-8D
Greenlee: 470/8
McMaster-Carr: 7950K85 7950K15
Panduit: FSD76-8-D
Phoenix Contact: 3200894 3200519
SPC Technology: SPC4508 84N2042
TE Connectivity: 966067-5
Thomas Betts: F2024
Tyco AMP: 966 067-5
WAGO: 216-202
Weidmuller: 9019410000
Wieland: 06.600.2127.0
ZF: V3AE0041
