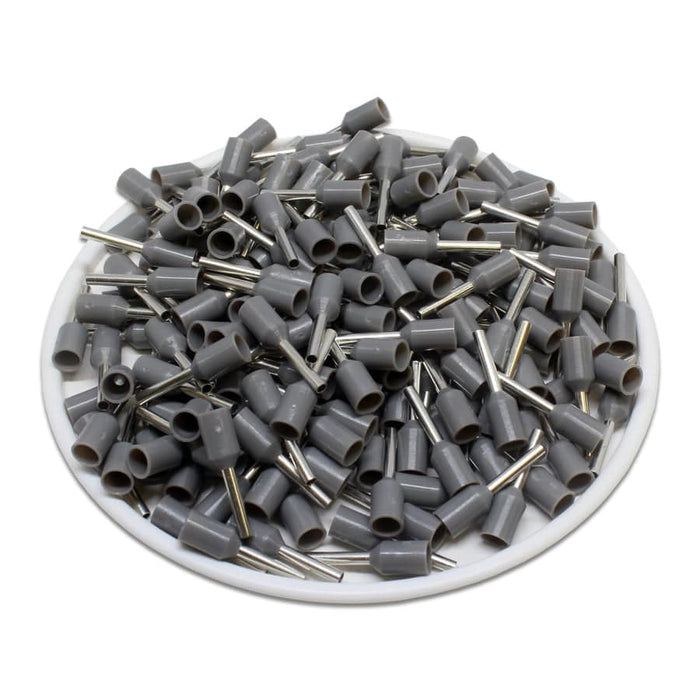

AD07508L - 20 AWG (8mm Pin) Insulated Ferrules - Gray - Large Cap

Original price $7.68 - Original price $7.68
Original price
$7.68
$7.68 - $7.68
Current price $7.68
SKU AD07508L
Availability:
in stock, ready to be shipped
Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 20 AWG
Color: Gray
L1: 14.0mm (0.551")

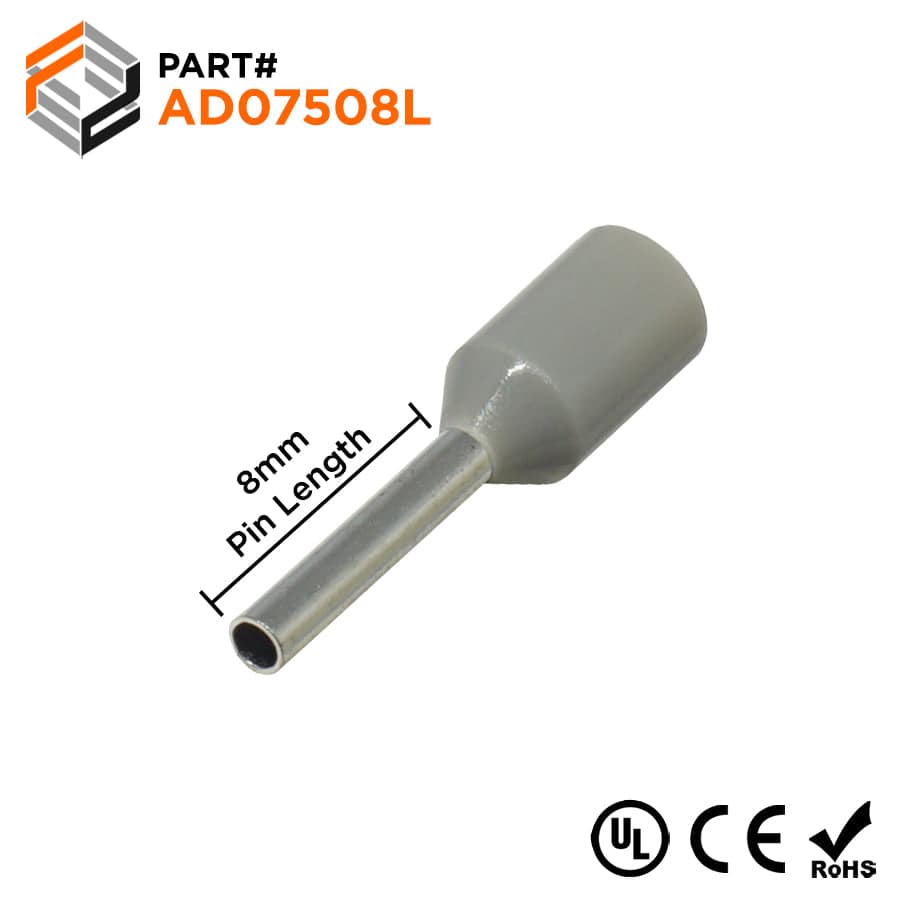

L2: 8.0mm (0.315")
D: 1.57mm (0.062")
D1: 1.2mm (0.047")
D2: 3.2mm (0.125")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 17A
Material: Tin-Plated Copper

Technical Drawing:

Cross References

None:

Documents

Click to view data sheet

Videos

How to Crimp a Wire Ferrule?
