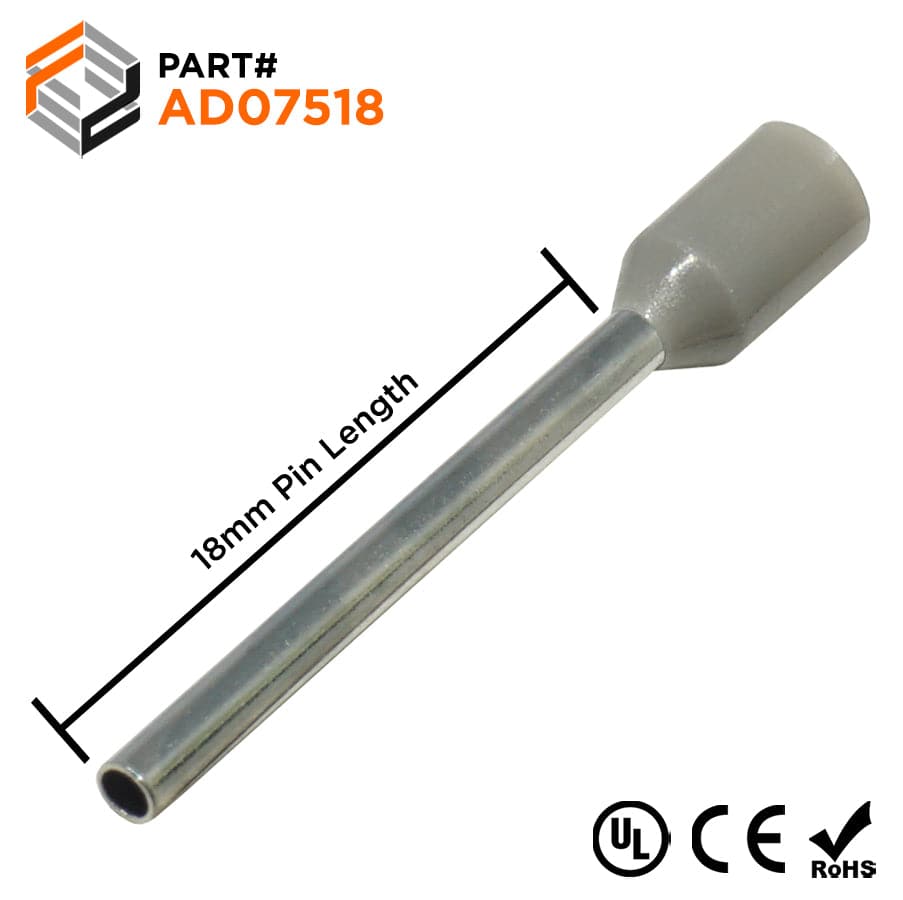

AD07518 - 20 AWG (18mm Pin) Insulated Ferrules - Gray

Original price $10.60 - Original price $10.60
Original price
$10.60
$10.60 - $10.60
Current price $10.60
SKU AD07518
Availability:
in stock, ready to be shipped

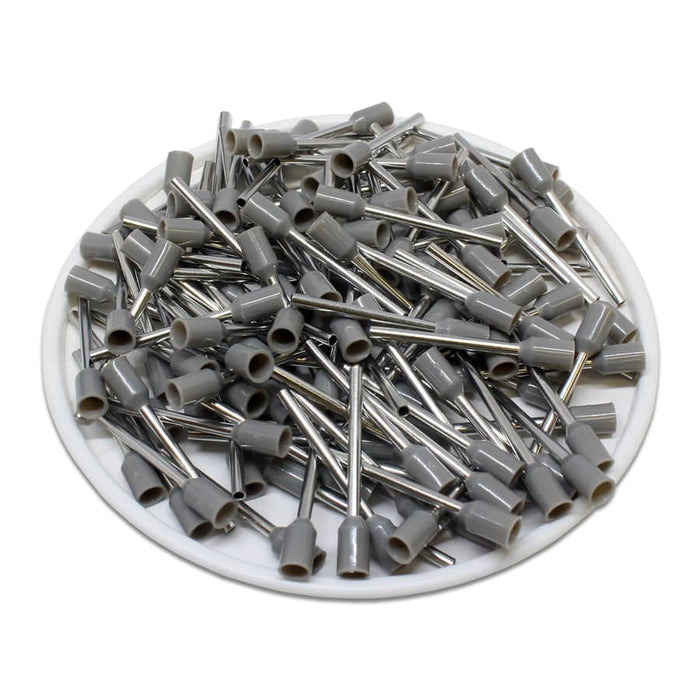

Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 20 AWG
Color: Gray
L1: 24.3mm (0.96")
L2: 18mm (0.71")
D: 1.57mm (0.062")
D1: 1.2mm (0.047")
D2: 2.8mm (0.110")
Material: Tin Plated Copper
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105°C (221°F) - 600V
Max Electrical Current: 17A

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
