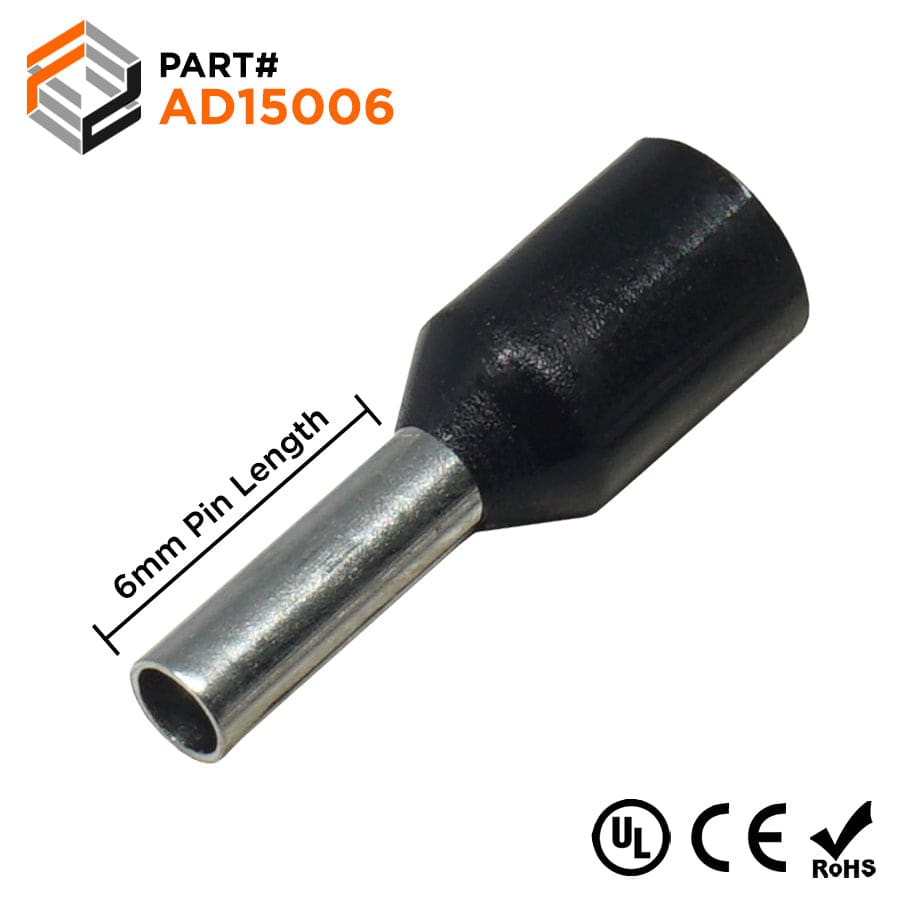

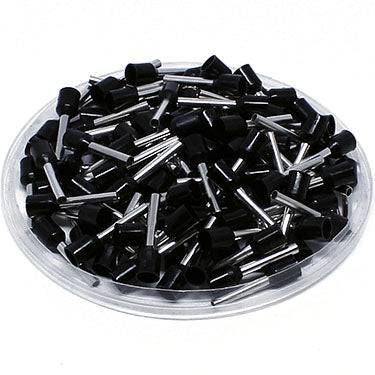

AD15006 - 16AWG (6mm Pin) Insulated Ferrules - Black

$7.22
SKU AD15006
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 16 AWG
Color: Black
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 18A
L1: 12.3mm (0.48")
L2: 6.0mm (0.24")
D: 2.0mm (0.08")
D1: 1.7mm (0.06")
D2: 3.5mm (0.14")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: XUSD01598
Altech Corp: FID1606
American Electrical: 1163015
Greenlee: 172/6
Panduit: FSF78-6-D FSD78-6-D
Phoenix Contact: 3200755
WAGO: 216-224
ZF: V3AE3705
