AD15008 - 16AWG (8mm Pin) Insulated Ferrules - Black

$6.99
SKU AD15008
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 16 AWG UL Approved: Yes
Color: Black CE Certified: Yes
L1: 14.0mm (.551") RoHS Compliant: Yes
L2: 8.0mm (.315") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 2.0mm (.079") Max Electrical Current: 18A
D1: 1.7mm (.067") Material: Tin Plated Copper
D2: 3.5mm (.138")

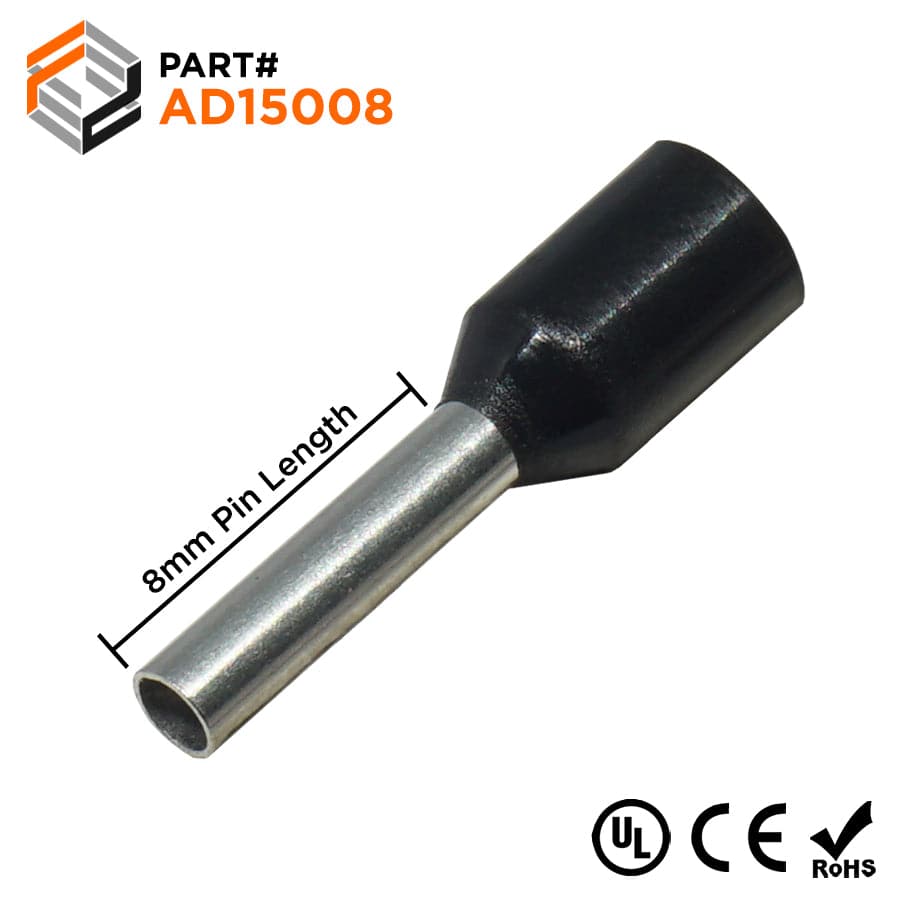

TECHNICAL DRAWING

Cross Reference Parts:

ABB: 30445703
Altech Corp: 2841.0 FID1608
American Electrical: 1183015 - 1181015
AUTOMATION DIRECT: BM-00604 V30AE000048
Crimp Supply: 13A11008
Eclipse: 701-100
Elecdirect: FER-16-8D
Greenlee: 472/8
LeGrand: 377 64
McMaster-Carr: 7950K94 7950K23
Panduit: FSF78-8-D FSD78-8-D
Phoenix Contact: 3200917 - 3200043
SPC Technology: SPC4516 84N2050
TE Connectivity: 1-966067-2
Thomas Betts: F4027 F2031
Tyco AMP: 1-966 067-2
WAGO: 216-203
Weidmuller: 9019120000
Wieland: 06.600.2327.0
ZF: V3AE0048 V30AE000048
