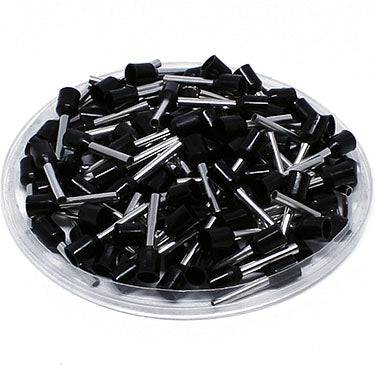

AD15012 - 16AWG (12mm Pin) Insulated Ferrules - Black

$7.68
SKU AD15012
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 16 AWG UL Approved: Yes
Color: Black CE Certified: Yes
L1: 18.0mm (.709") RoHS Compliant: Yes
L2: 12.0mm (.472") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 2.0mm (.079") Max Electrical Current: 18A
D1: 1.7mm (.067") Material: Tin Plated Copper
D2: 3.5mm (.138")

TECHNICAL DRAWING

Cross Reference Parts:

ABB: XUSD01862
Altech Corp: 2843.0 FID1612
American Electrical: 11123015
AUTOMATION DIRECT: BM-006041
Greenlee: 472/12
McMaster-Carr: 7950K96 & 7950K25
Panduit: FSF78-12-D
Phoenix Contact: 3201482
SPC Technology: SPC4518 84N2052
Thomas Betts: F2033
Tyco AMP: 1-966 067-4
WAGO: 216-264
Weidmuller: 9019140000
ZF: V3AE0050

Click to view data sheet

How to Crimp a Wire Ferrule?
