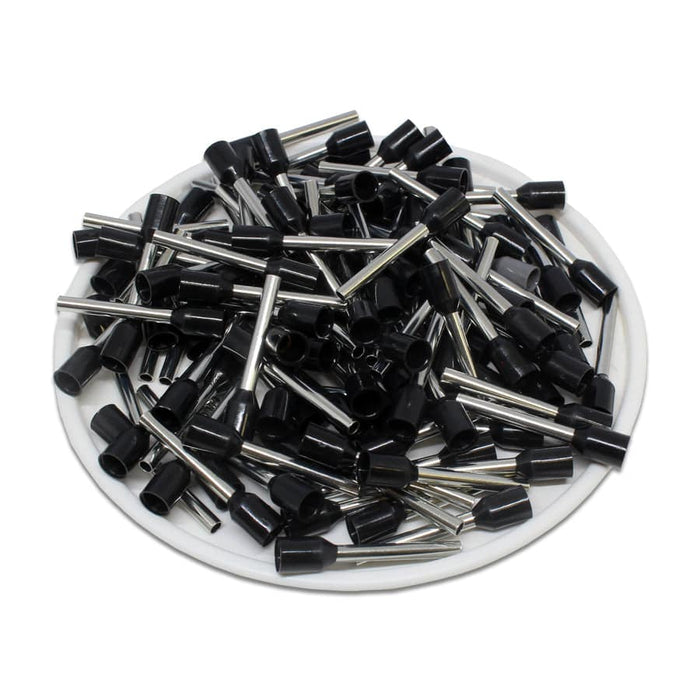

AD15015 - 16AWG (15mm Pin) Insulated Ferrules - Black

Sold out
$9.15
SKU AD15015
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 16 AWG
Color: Black
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 18A
L1: 21.3mm (0.84")

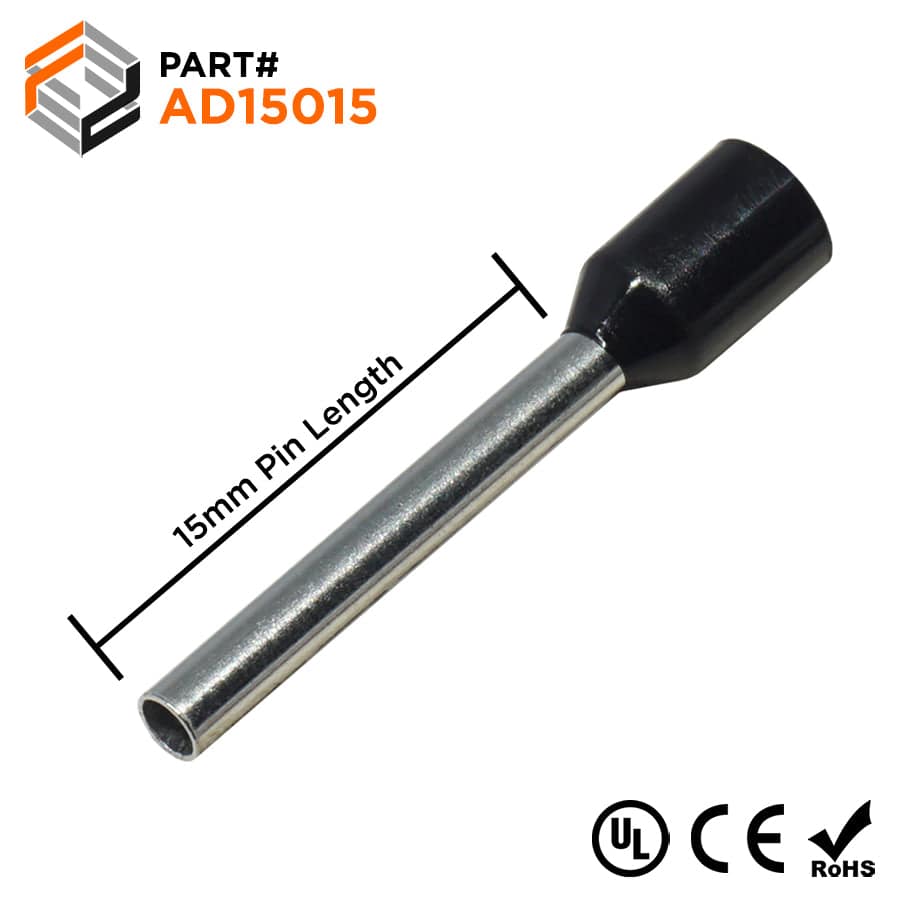

L2: 15.0mm (0.59")
D: 2.0mm (0.79")
D1: 1.7mm (0.07")
D2: 3.5mm (0.14")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
