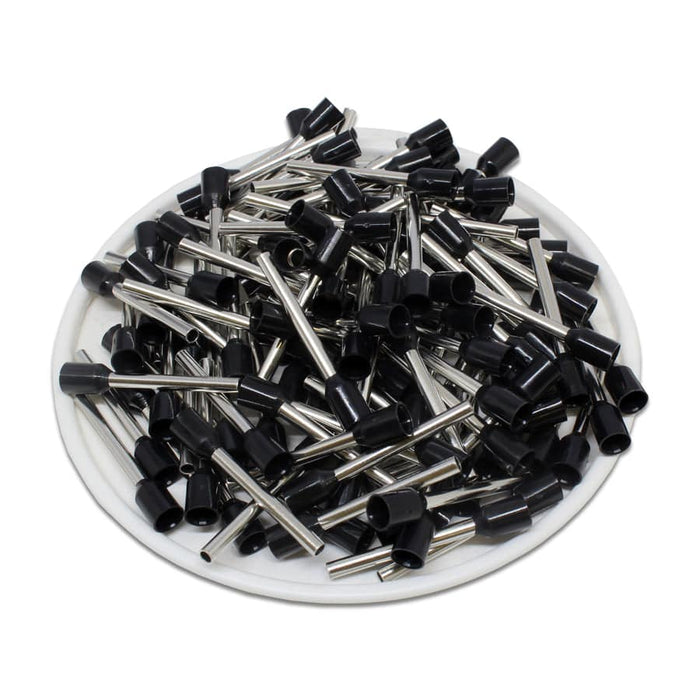

AD15018 - 16AWG (18mm Pin) Insulated Ferrules - Black

$11.27
SKU AD15018
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 16 AWG UL Approved: Yes
Color: Black CE Certified: Yes
L1: 24.0mm (.945") RoHS Compliant: Yes
L2: 18.0mm (.709") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 2.0mm (.079") Max Electrical Current: 18A
D1: 1.7mm (.067") Material: Tin Plated Copper
D2: 3.5mm (.138")

TECHNICAL DRAWING

Cross Reference Parts:

ABB: 30445814
Altech Corp: 2844.0 FID1618
American Electrical: 11183015
Crimp Supply: 13A11009
Eclipse: 701-101
Greenlee: 472/18
McMaster-Carr: 7950K97 7950K26
Panduit: FSF78-18-D
Phoenix Contact: 3200056
Thomas Betts: F2034
Tyco AMP: 1-966 067-5
WAGO: 216-284
Weidmuller: 9019150000
Wieland: 06.600.2427.0
ZF: V3AE0051

Click to view data sheet

How to Crimp a Wire Ferrule?
