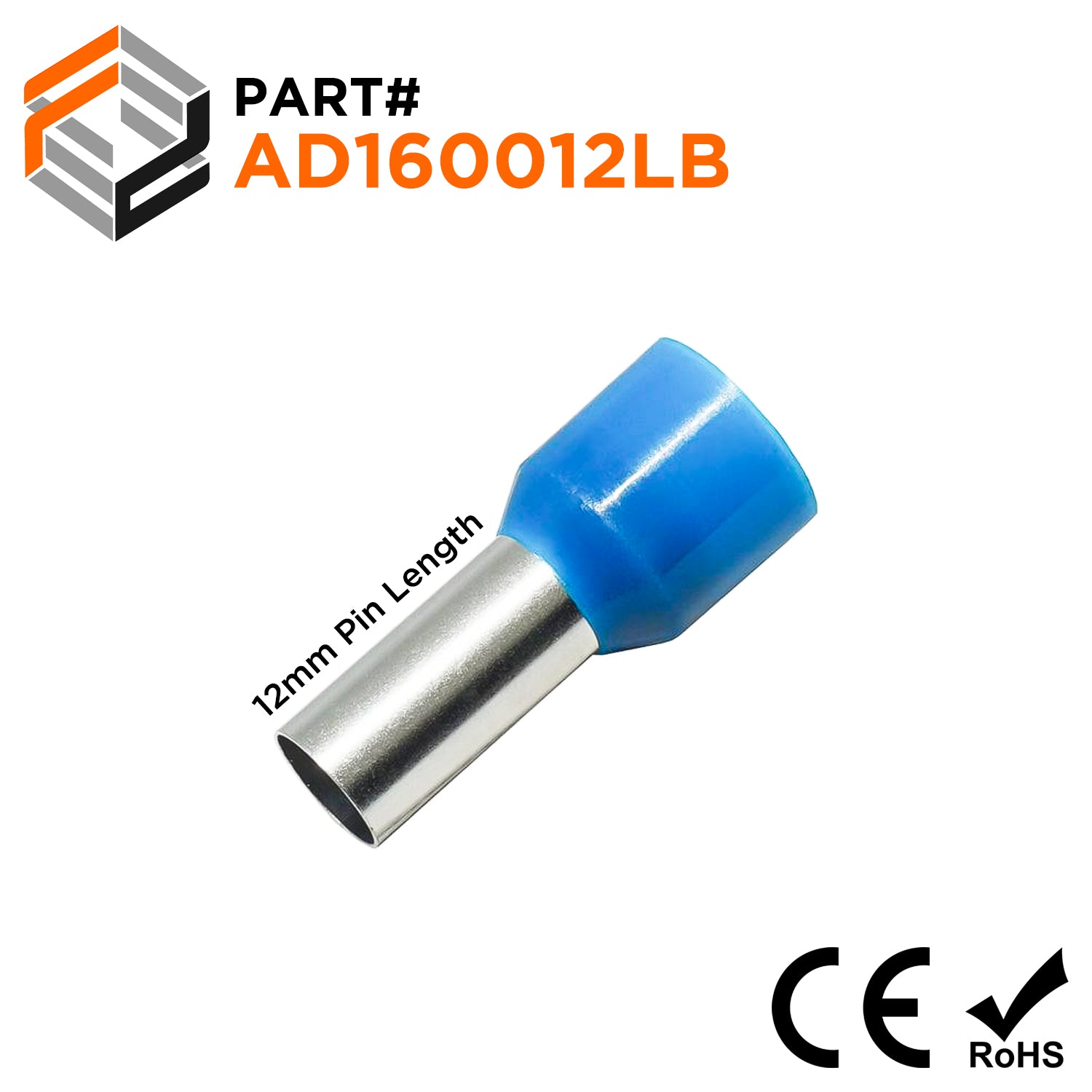

AD160012LB - 6 AWG (12mm Pin) Insulated Ferrules - Light Blue

Original price $6.22 - Original price $6.22
Original price
$6.22
$6.22 - $6.22
Current price $6.22
SKU AD160012LB
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 6 AWG
Color: Blue
L1: 22.0mm (0.87")
L2: 12.0mm (0.47")
D: 6.2mm (0.24")
D1: 5.8mm (0.228")
D2: 8.8mm (0.34")
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 95A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
