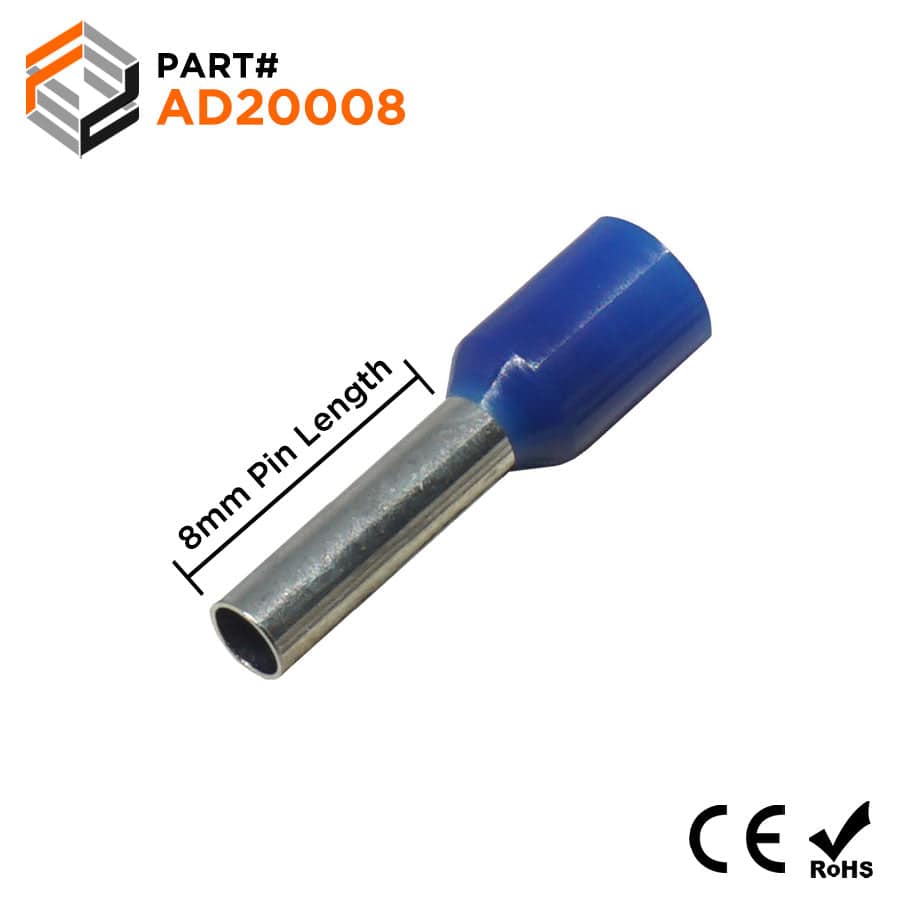

AD20008 - True 14 AWG (8mm Pin) Insulated Ferrules - Blue

Original price $9.63 - Original price $9.63
Original price
$9.63
$9.63 - $9.63
Current price $9.63
SKU AD20008
Availability:
in stock, ready to be shipped
Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: True 14 AWG
Color: Blue
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 30A
L1: 15.0mm (0.59")
L2: 8.0mm (0.31")
D: 2.3mm (0.09")
D1: 2.0mm (0.08")
D2: 3.4mm (0.13")
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

McMaster-Carr: 7950K27
