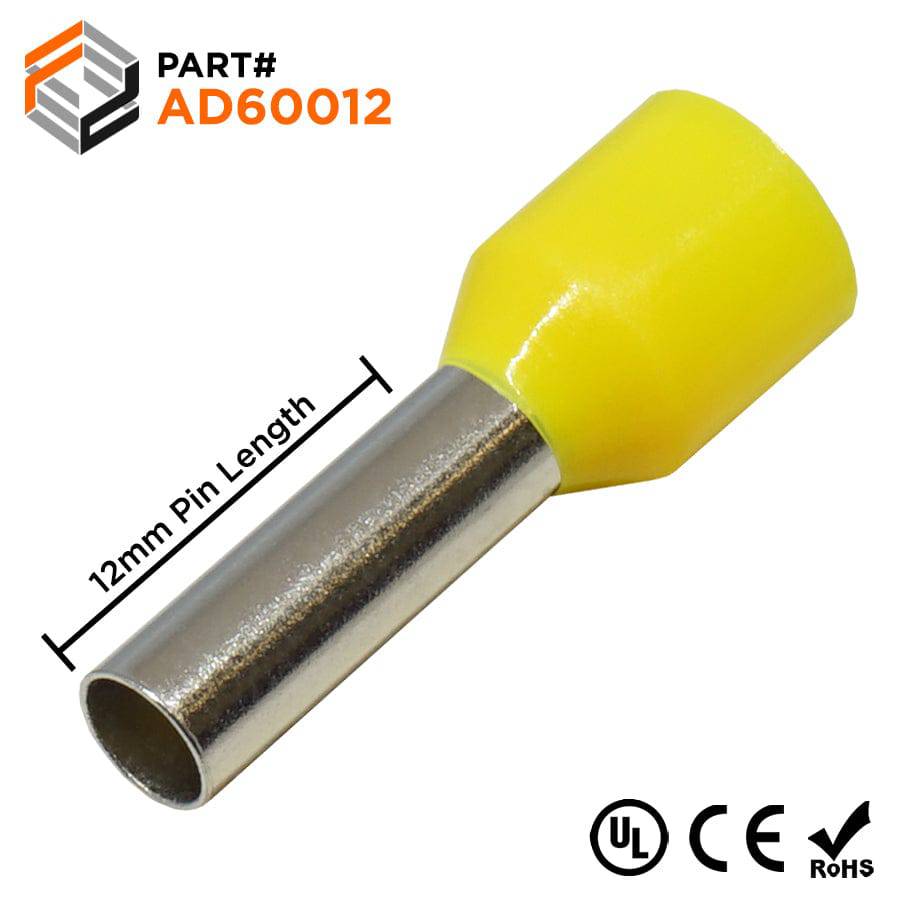

AD60012 - 10 AWG (12mm Pin) Insulated Ferrules - Yellow

$3.73
SKU AD60012
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 10 AWG
Color: Yellow
Material: Tin-Plated Copper
L1: 20mm (0.78")
L2: 12.0mm (0.47")
D: 3.9mm (0.15")
D1: 3.5mm (0.14")
D2: 6.3mm (0.25")
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 50A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: 30446301
Altech Corp: 2851.0 FID1012
American Electrical: 11121060
Automation Direct: BM-00610
Eclipse: 701-085
Elecdirect: FER-10-12C
Greenlee: 475/12
McMaster-Carr: 7950K56 & 7950K34
Panduit: FSD82-12-C
Phoenix Contact: 3200548
SPC Technology: SPC4526 84N2060
TE Technology: 2-966067-2
Thomas Betts: F2041
Tyco AMP: 2-966 067-2
WAGO: 216-208
Weidmuller: 9019220000
Wieland: 06.600.2927.0
ZF: V3AE0058 V30AE000058
