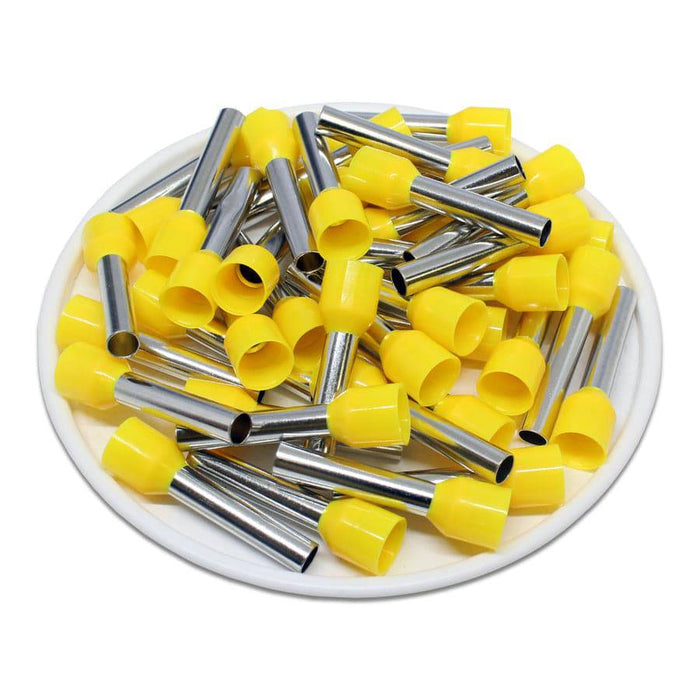

AD60018 - 10 AWG (18mm Pin) Insulated Ferrules - Yellow
Original price
$4.88
-
Original price
$4.88
Original price
$4.88
$4.88
-
$4.88
Current price
$4.88
SKU AD60018
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: 30446402
Altech Corp: 2852.0 FID1018
American Electrical: 11181060
Automation Direct: BM-00611 V3AE000059
Greenlee: 475/18
McMaster-Carr: 7950K48 7950K35
Panduit: FSD82-18-C
Phoenix Contact: 3200603
Thomas Betts: F2042
Tyco AMP: 2-966 067-3
WAGO: 216-288
Weidmuller: 9019230000
Wieland: 06.600.3027.0
ZF: V3AE0059 V3AE000059
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 10 AWG |
| Color: | Yellow |
| Material: | Tin-Plated Copper |
| L1: | 26mm (1.02") |

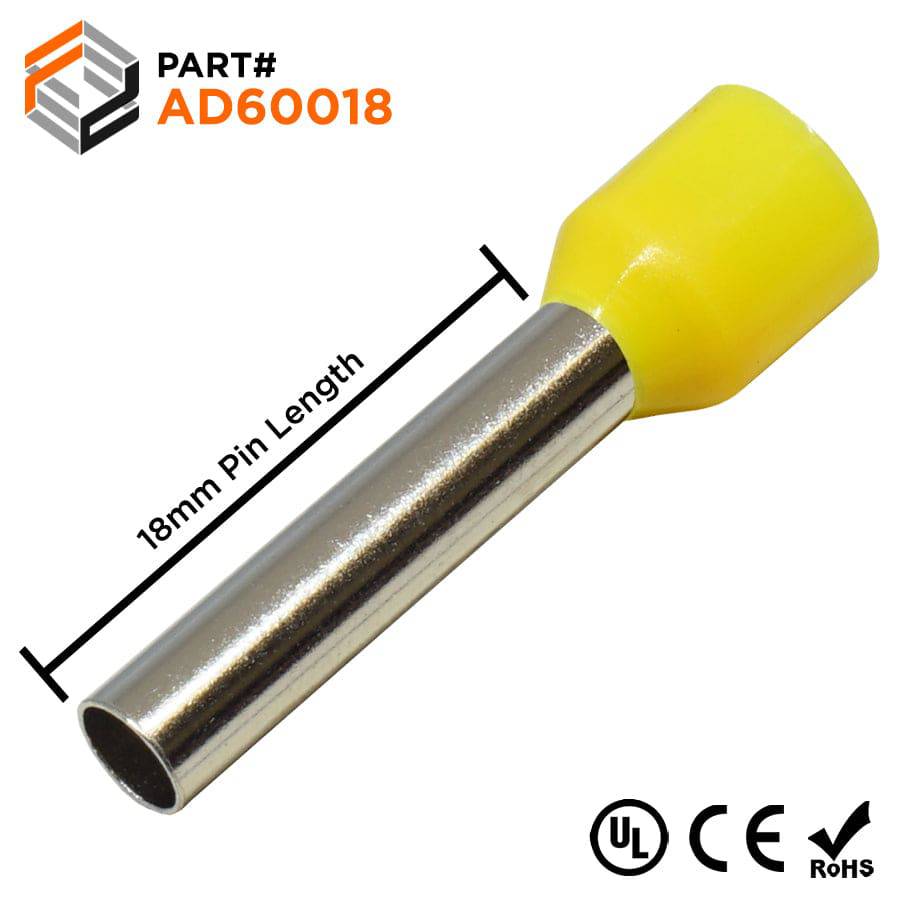

| L2: | 18.0mm (0.71") |
| D: | 3.9mm (0.15") |
| D1: | 3.5mm (0.14") |
| D2: | 6.3mm (0.25") |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 50A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:ABB: 30446402
Altech Corp: 2852.0 FID1018
American Electrical: 11181060
Automation Direct: BM-00611 V3AE000059
Greenlee: 475/18
McMaster-Carr: 7950K48 7950K35
Panduit: FSD82-18-C
Phoenix Contact: 3200603
Thomas Betts: F2042
Tyco AMP: 2-966 067-3
WAGO: 216-288
Weidmuller: 9019230000
Wieland: 06.600.3027.0
ZF: V3AE0059 V3AE000059
Documents
Click to view product spec sheet:
