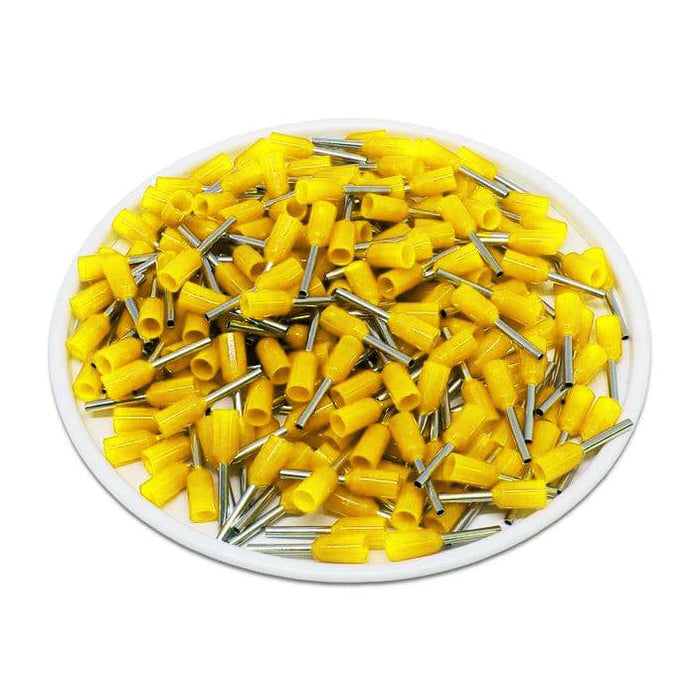

AS05008YE - 22 AWG (8mm Pin) Insulated Ferrules - Yellow - Special Color
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$8.37
$8.37
-
$8.37
Current price
$8.37
SKU AS05008YE
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
None
Dimensions & Features:
| Wire Size: | 22 AWG |
| Color: | Yellow |
| L1: | 14.0mm (0.551") |
| L2: | 8.0mm (0.315") |
| D: | 1.3mm (0.051") |
| D1: | 1.0mm (0.039") |
| D2: | 2.6mm (0.102") |
| UL Approved: | No |
| CE Certfied: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 12A |
| Material: | Tin-Plated Copper |
Cross References
Cross Reference Parts:None
Documents
Click to view data sheet
