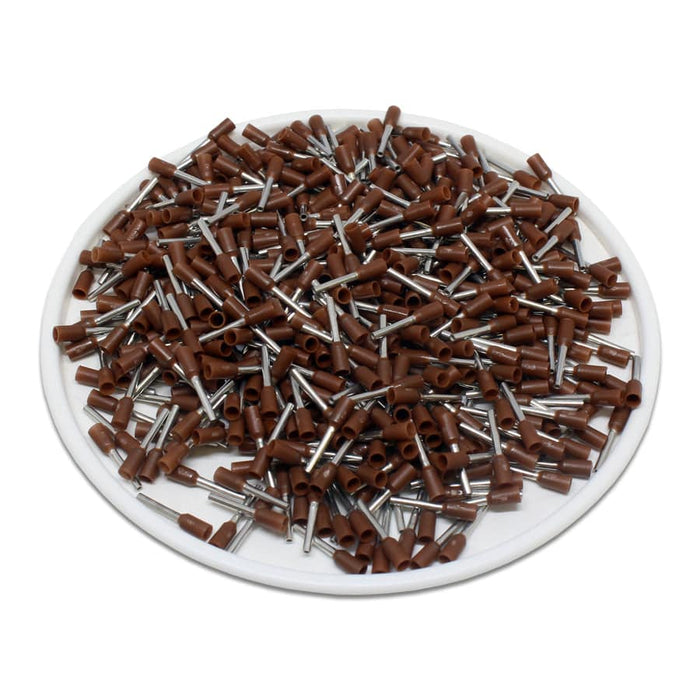

AT01406 - 26 AWG (6mm Pin) Insulated Ferrules - Brown
Original price
$3.30
-
Original price
$13.66
Original price
$13.66
$3.30
-
$13.66
Current price
$13.66
SKU AT01406
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
ABB: XUS001802
American Electrical: 1163014
Crimp Supply: 13A11001
Greenlee: 166/6
Panduit: FSF72-6-D
Tyco AMP: 966 292-1
Weidmuller: 9028250000
ZF: V3AE1669
Dimensions & Features:
| Wire Size: | 26 AWG |
| Color: | Brown |

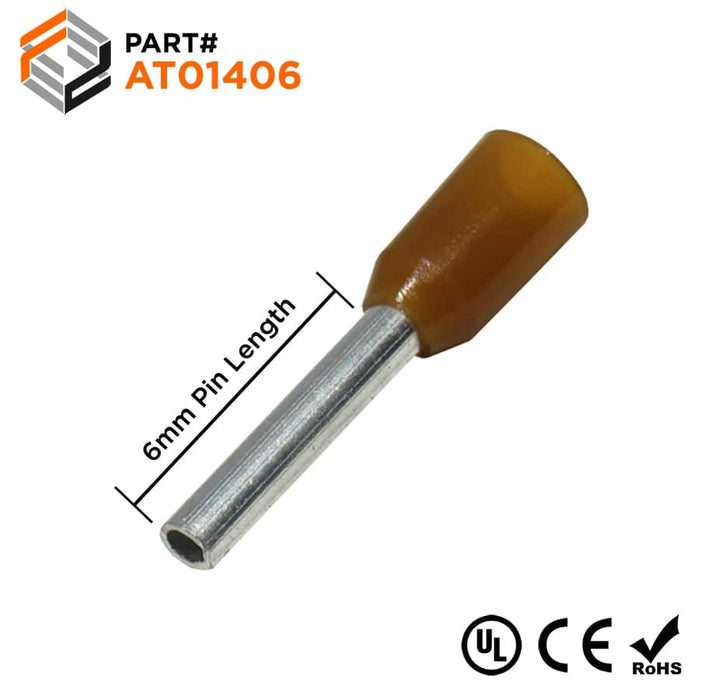

| L1: | 10.4mm (.409") |
| L2: | 6.0mm (.236") |
| D: | 1.12mm (.044") |
| D1: | 0.82mm (.032") |
| D2: | 1.5mm (.059") |
| Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 5.5A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:ABB: XUS001802
American Electrical: 1163014
Crimp Supply: 13A11001
Greenlee: 166/6
Panduit: FSF72-6-D
Tyco AMP: 966 292-1
Weidmuller: 9028250000
ZF: V3AE1669
Documents
Click to view product spec sheet:
