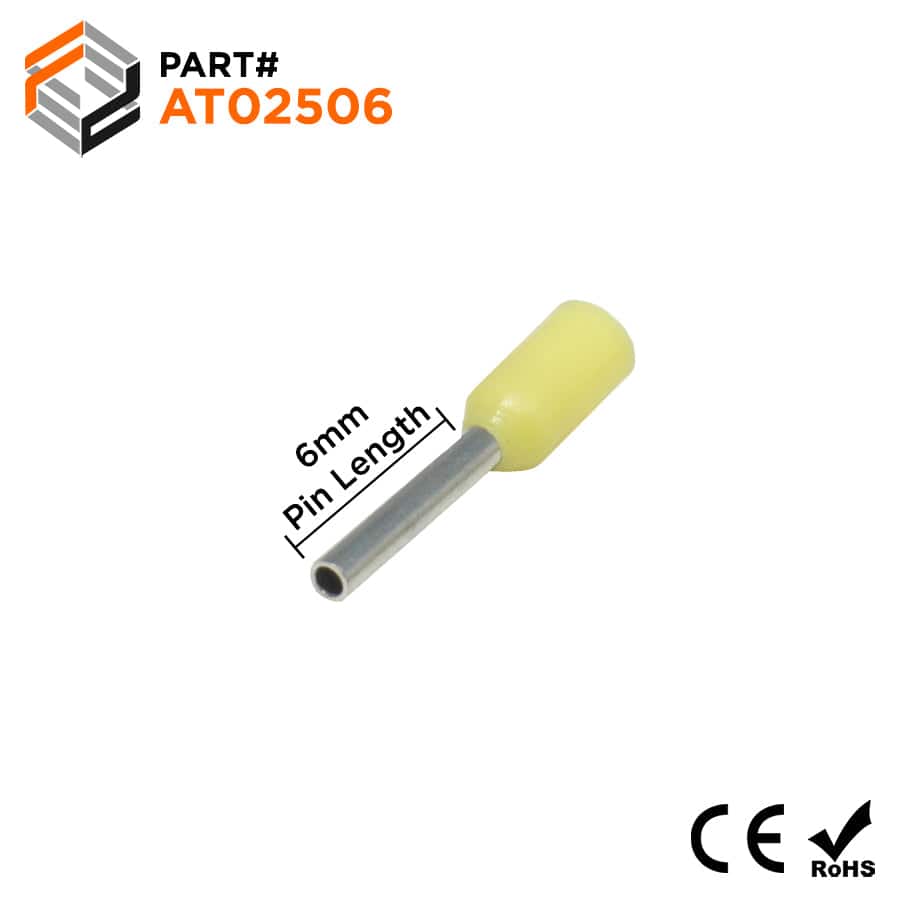

AT02506 - 24 AWG (6mm Pin) Insulated Ferrules - Yellow

Original price $8.70 - Original price $8.70
Original price
$8.70 - $8.70
Current price $8.70
SKU AT02506
in stock, ready to be shipped
Quantity Options: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 24 AWG
Color: Yellow
L1: 10.4mm (0.409")
L2: 6.0mm (0.236")
D: 1.1mm (0.043")
D1: 0.8mm (0.031")
D2: 1.6mm (0.062")
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 7A

Technical Drawing:


Cross References

ABB: XUSD01806
American Electrical: 11610025
Eclipse: 701-104
Greenlee: 167/6
McMaster-Carr: 7950K77, 7950K43
Panduit: FSF73-6-D
Phoenix Contact: 3203024
Power Phase - Fastenal: 0749596

Thomas Betts: F4006
Tyco AMP: 966 292-3
WAGO: 216-321
Weidmuller: 9021210000


Click to view data sheet
