AT03408 - 22 & 24 AWG (8mm Pin) Insulated Ferrules - Pink

Original price $0.00 - Original price $9.84
Original price
$9.84
$0.00 - $9.84
Current price $9.84
SKU AT03408
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 22 & 24 AWG
Color: Pink
L1: 12.4mm (0.49")

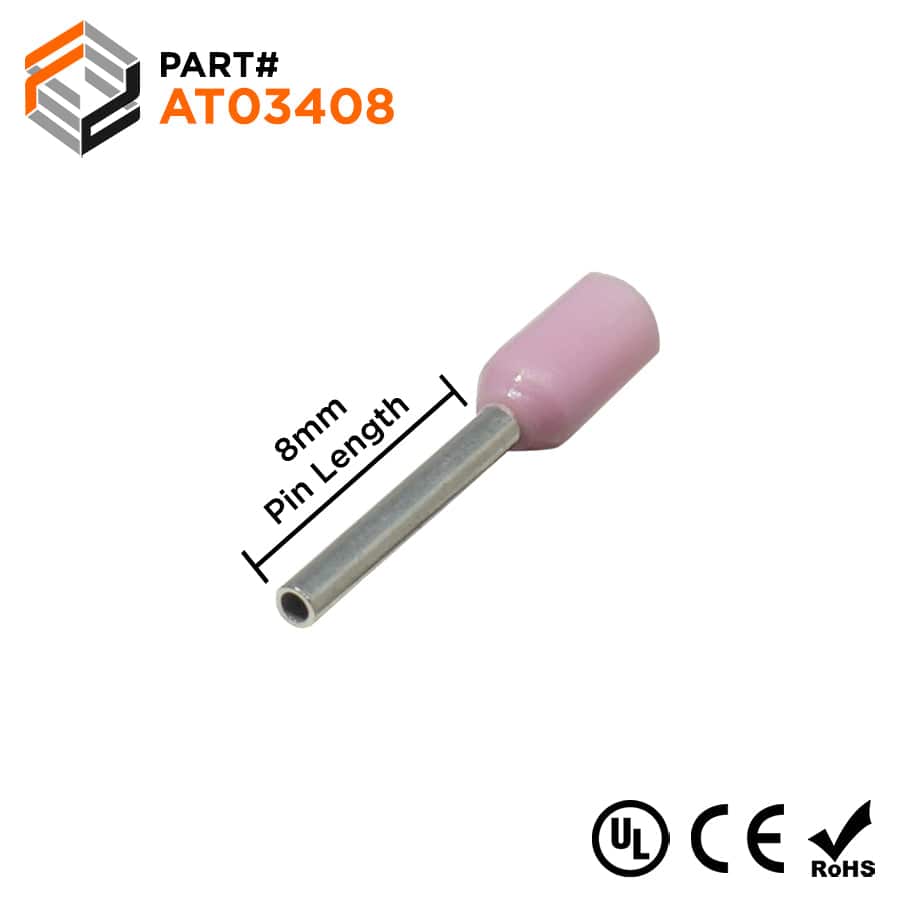

L2: 8.0mm (0.315")
D: 1.15mm (0.045")
D1: 0.85mm (0.033")
D2: 2.0mm (0.079")
UL Approved: Yes
CE Certfied: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 9A

Technical Drawing:


Cross References

ABB: XUS001823
American Electrical: 1183034
Greenlee: 168/8
Panduit: FSF74-8-D
ZF: V3AE1665
