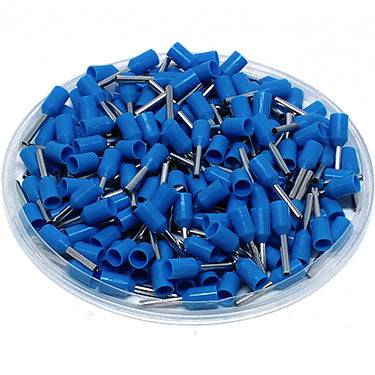

20 AWG (6mm Pin) Insulated Ferrules - Blue

$7.22
SKU AT07506
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 20 AWG
Color: Blue
L1: 12.4mm (0.49")
L2: 6mm (0.24")
D: 1.57mm (0.062")
D1: 1.2mm (0.047")
D2: 2.8mm (0.110")
Material: Tin Plated Copper
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105°C (221°F) - 600V
Max Electrical Current: 17A

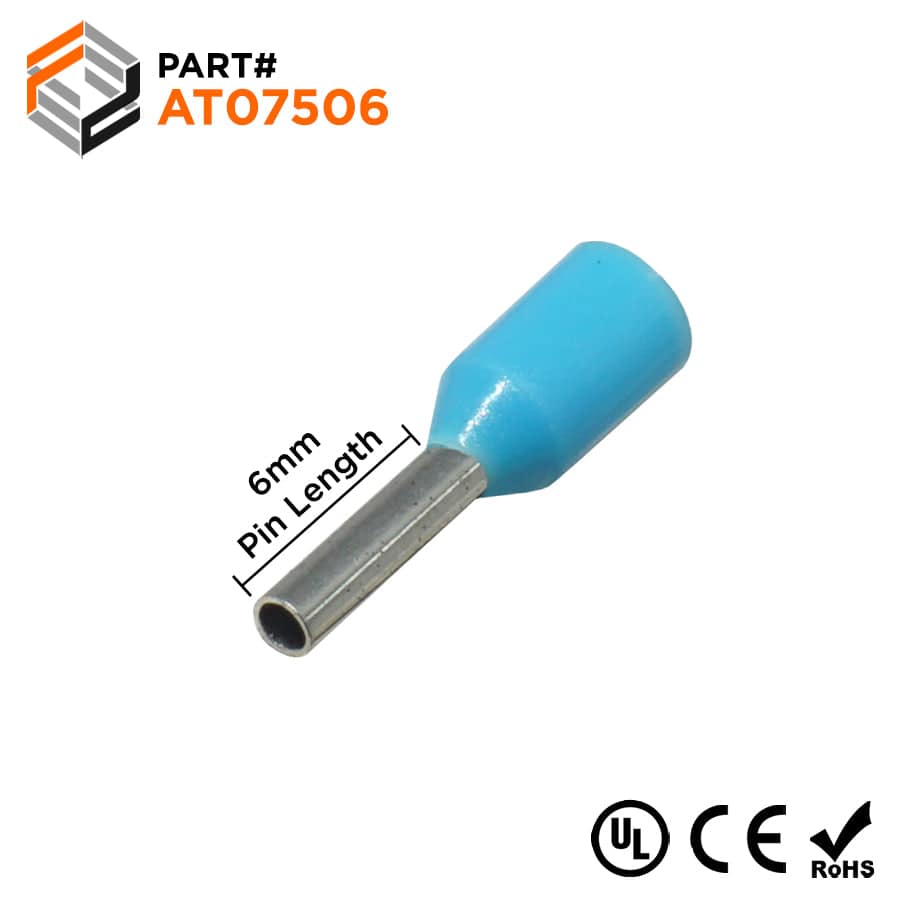

Product Drawing:

Cross References

Cross Reference Parts:
ABB: XUS001839
American Electrical: 1163075
Greenlee: 170/6
Panduit: FSF76-6-D
Tyco AMP: 1-966 292-0
Weidmuller: 9021030000
ZF: V3AE0546
