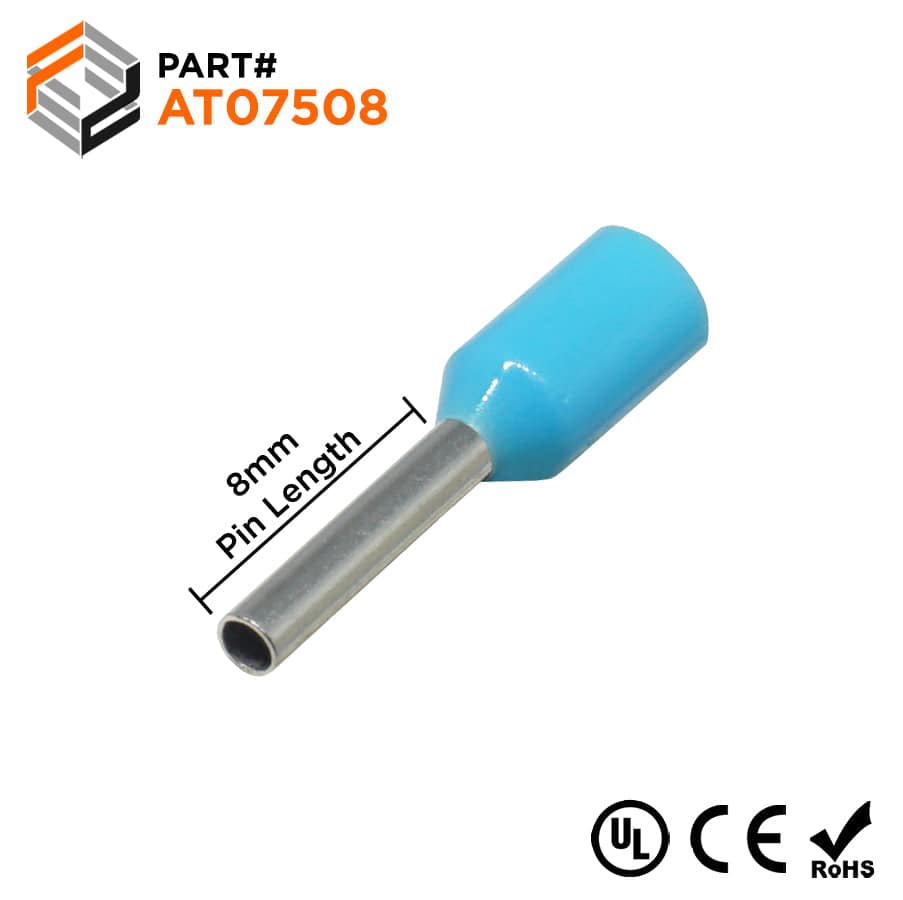

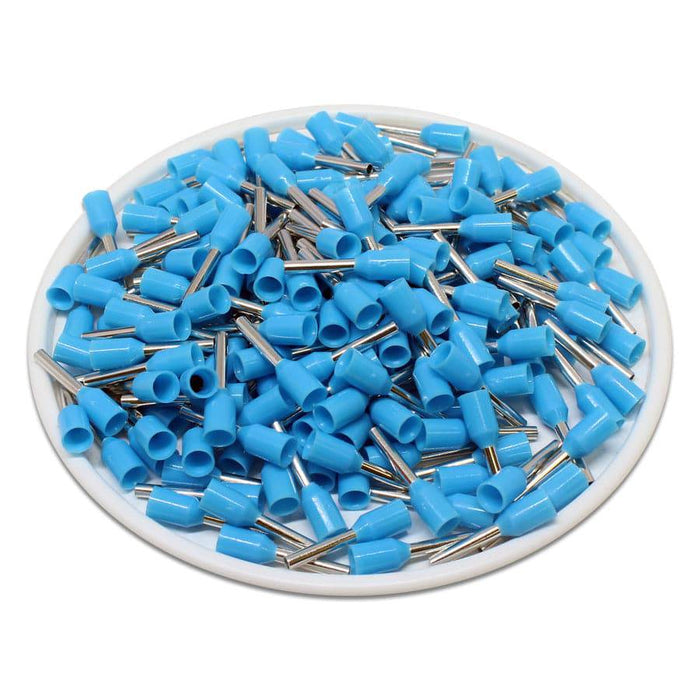

20 AWG (8mm Pin) Insulated Ferrules - Blue

$6.99
SKU AT07508
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 20 AWG UL Approved: Yes
Color: Blue CE Certified: Yes
L1: 14.0mm (.551") RoHS Compliant: Yes
L2: 8.0mm (.315") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 1.57.mm (.062") Max Electrical Current: 17A
D1: 1.2mm (.047") Material: Tin Plated Copper
D2: 2.8mm (.110")

TECHNICAL DRAWING

Cross Reference Parts:

ABB: XUS001841
American Electrical: 1183075
Crimp Supply: 13A11005
Greenlee: 170/8
LeGrand: 377 62
Panduit: FSF76-8-D
Phoenix Contact: 3200027
Thomas Betts: F4023
Tyco AMP: 1-966 292-1
Weidmuller: 9021040000
ZF: V3AE0537

Click to view data sheet

How to Crimp a Wire Ferrule?
