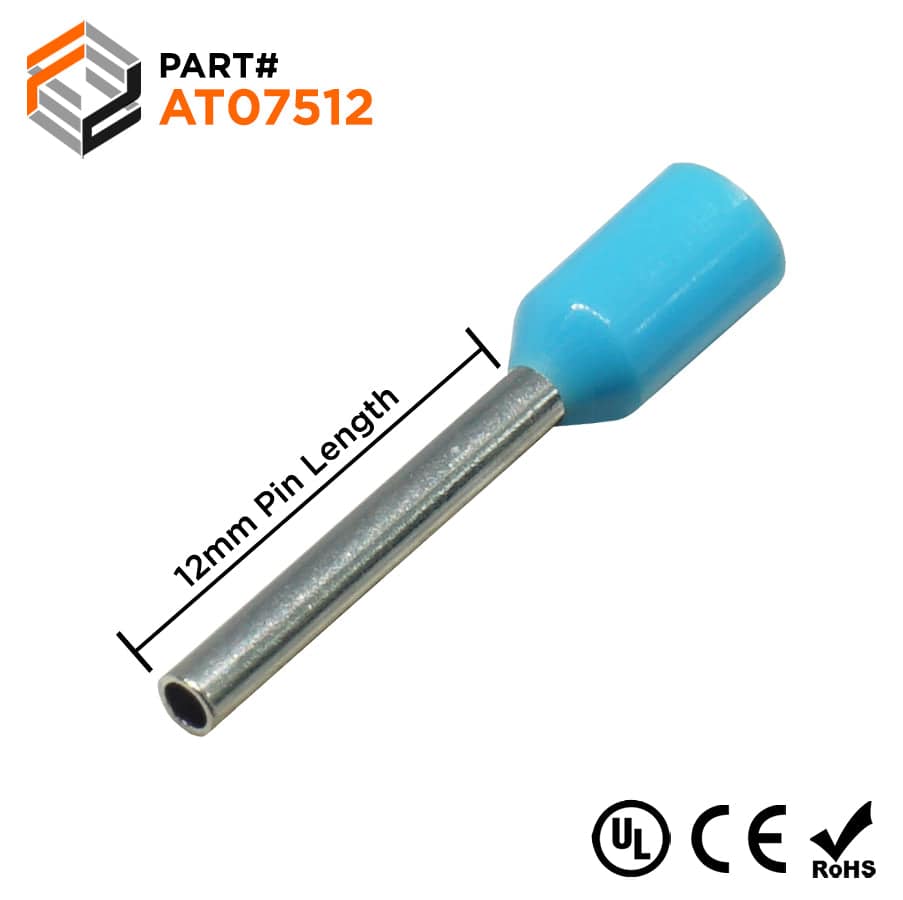

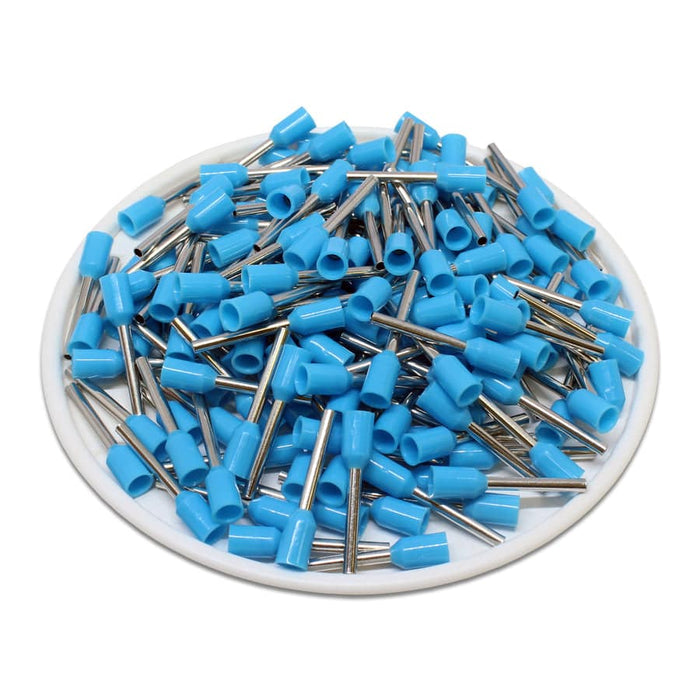

20 AWG (12mm Pin) Insulated Ferrules - Blue

$7.68
SKU AT07512
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 20 AWG
Color: Blue
Material: Tin-Plated Copper
L1: 18mm (0.71")
L2: 12mm (0.47")
D: 1.57mm (0.06")
D1: 1.2mm (0.05")
D2: 2.8mm (0.11")
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 17A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: XUS001847
American Electrical: 11123075
Panduit: FSF76-12-D
Tyco AMP: 1-966 292-3
Weidmuller: 9021060000
ZF: V3AE0548
