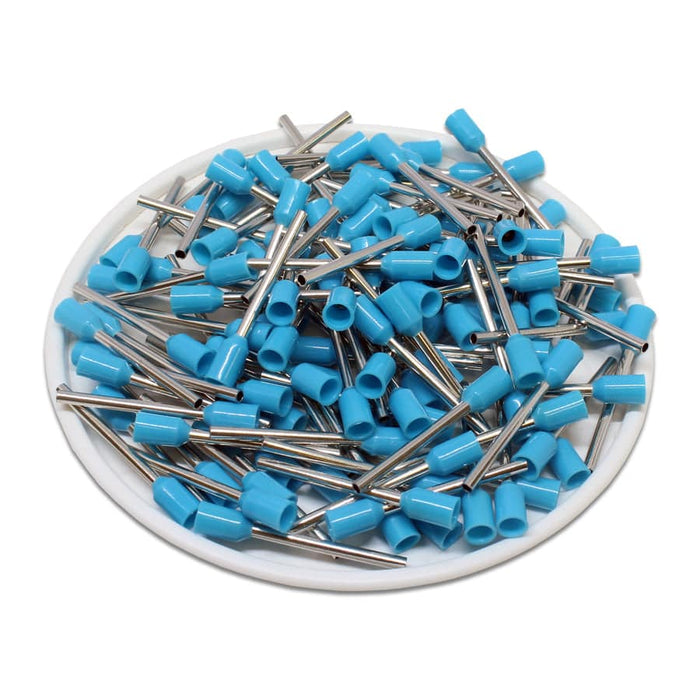

AT07518 - 20 AWG (18mm Pin) Insulated Ferrules - Blue
Original price
$10.60
-
Original price
$10.60
Original price
$10.60
$10.60
-
$10.60
Current price
$10.60
SKU AT07518
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | 20 AWG |
Color: | Blue |
Material: | Tin Plated Copper |
Max Electrical Rating: | 105°C - 600 Volts |
Max Electrical Current: | 17A |
L1: | 24.3mm (0.95") |
L2: | 18.0mm (0.71") |
D: | 1.57mm (0.06") |
D1: | 1.2mm (0.05") |
D2: | 2.8mm (0.11") |
UL Approved: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
