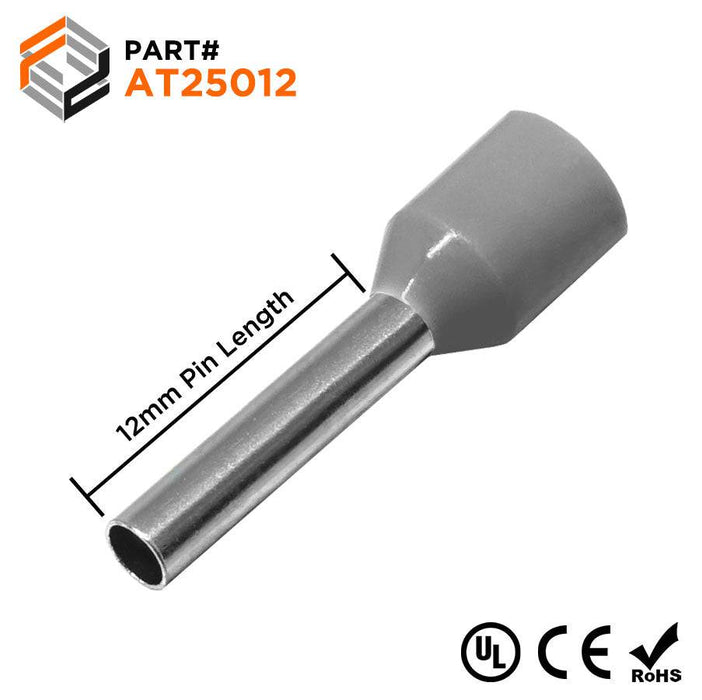

AT24012 - 14AWG (12mm Pin) Insulated Ferrules - Gray

SKU AT25012
Piece Quantity

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Wire Size: 14 AWG UL Approved: Yes
Color: Gray CE Certified: Yes
L1: 18.0mm (.709") RoHS Compliant: Yes
L2: 12.0mm (.472") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 2.5mm (.098") Max Electrical Current: 30A
D1: 2.2mm (.087") Material: Tin Plated Copper
D2: 4.2mm (.165")


Cross Reference Parts:

ABB: XUS001872
American Electrical: 11123025
Crimp Supply: 13A11011
Eclipse: 701-113
Panduit: FSF80-12-D
Phoenix Contact: 3200205
Tyco AMP: 2-966 292-2
Weidmuller: 9021080000
ZF: V3AE0549
