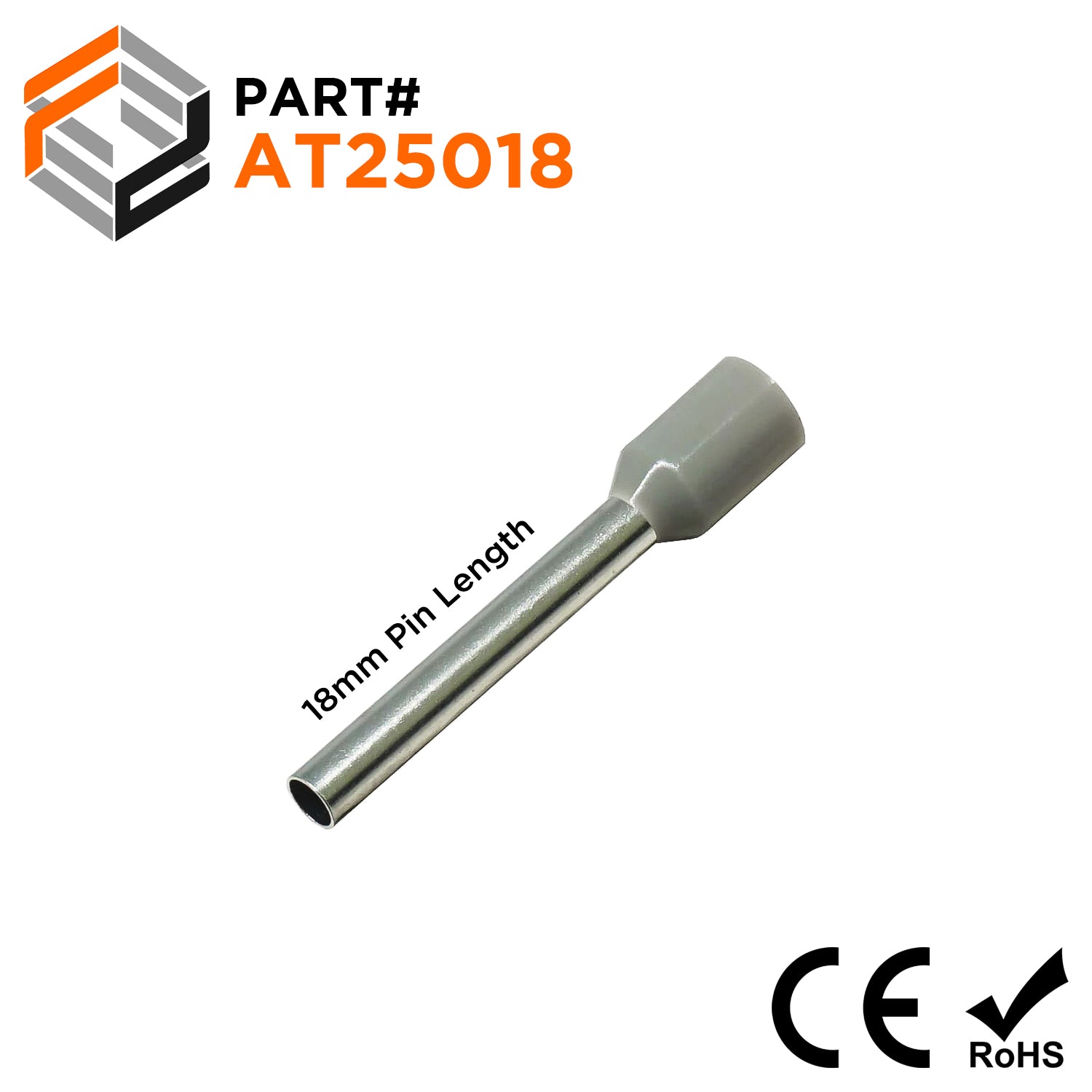

AT25018 - 14AWG (18mm Pin) Insulated Ferrules - Gray

$12.19
SKU AT25018
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 14 AWG
Color: Gray
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 30A
L1: 24mm (0.94")
L2: 18.0mm (0.71")
D: 2.5mm (0.09")
D1: 2.2mm (0.08")
D2: 4.2mm (0.16")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: XUS001873
American Electrical: 11183025
Crimp Supply: 13A11012
Greenlee: 173/18
Panduit: FSF80-18-D
Phoenix Contact: 3200072
Tyco AMP: 2-966 292-3
WAGO: 216-286
Weidmuller: 9021090000
ZF: V3AE0550
