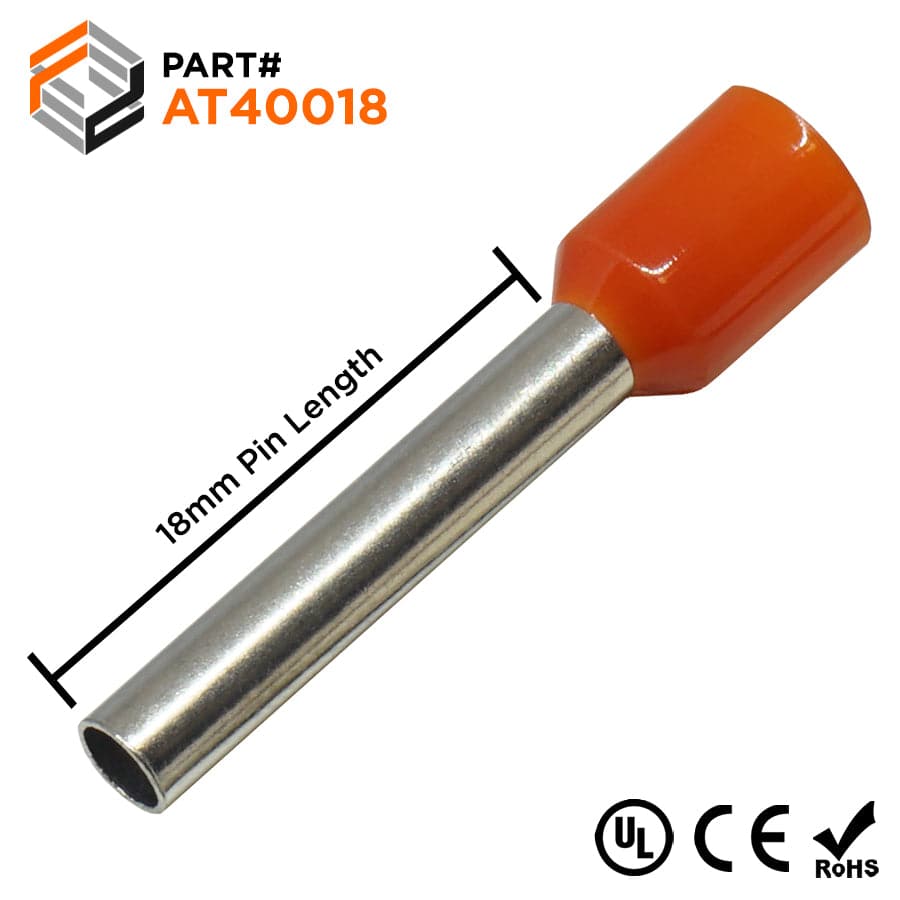

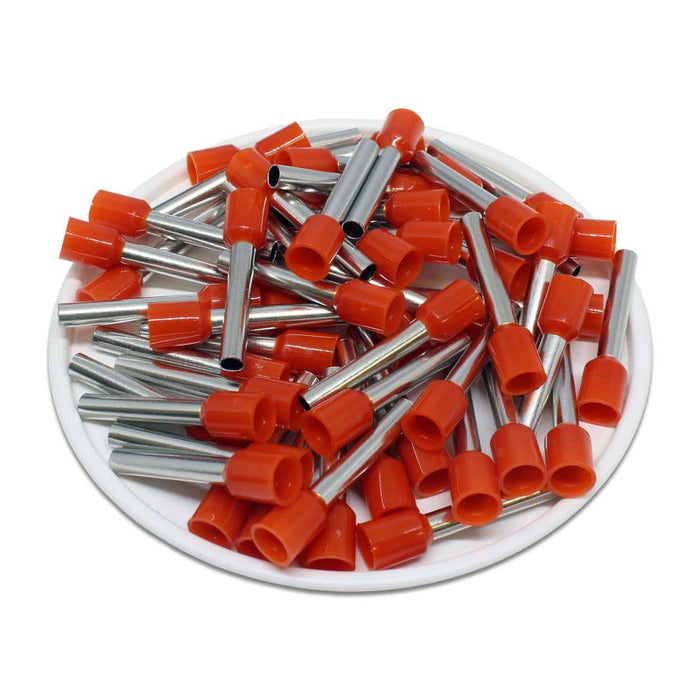

AT40018 - 12 AWG (18mm Pin) Insulated Ferrules - Orange
Original price
$19.72
-
Original price
$19.72
Original price
$19.72
$19.72
-
$19.72
Current price
$19.72
SKU AT40018
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUS001878
American Electrical: 11183040
Crimp Supply: 13A11014
Greenlee: 174/18
Panduit: FSF81-18-D
Phoenix Contact: 3200098
Tyco AMP: 2-966 292-6
Weidmuller: 9021120000
ZF: V3AE0552
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 12 AWG |
| Color: | Orange |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 35A |
| L1: | 26.0mm (1.02") |
| L2: | 18.0mm (0.71") |
| D: | 3.3mm (0.13") |
| D1: | 2.8mm (0.11") |
| D2: | 4.8mm (0.19") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUS001878
American Electrical: 11183040
Crimp Supply: 13A11014
Greenlee: 174/18
Panduit: FSF81-18-D
Phoenix Contact: 3200098
Tyco AMP: 2-966 292-6
Weidmuller: 9021120000
ZF: V3AE0552
Documents
Click to view product spec sheet:
