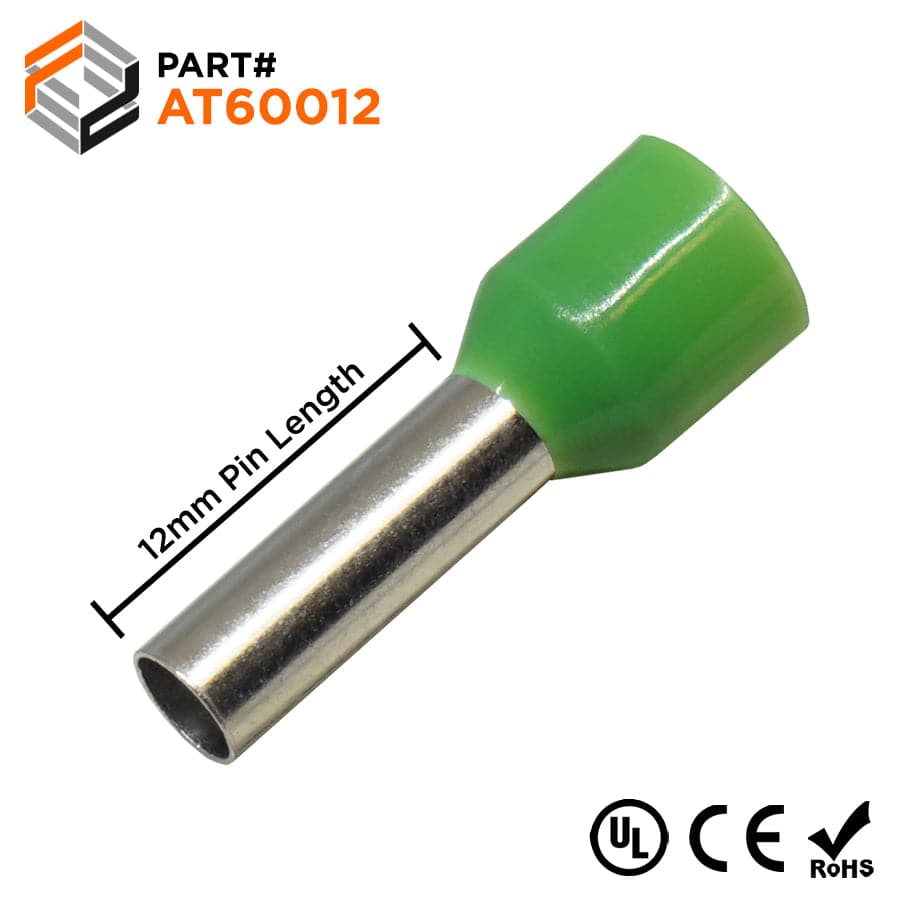

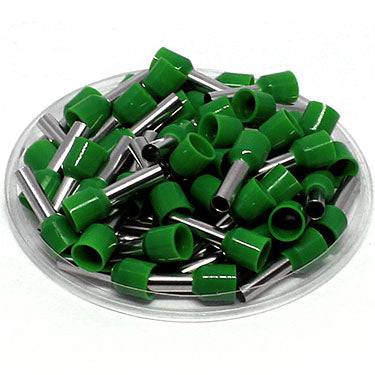

AT60012 - 10 AWG (12mm Pin) Insulated Ferrules - Green
Original price
$3.78
-
Original price
$3.78
Original price
$3.78
$3.78
-
$3.78
Current price
$3.78
SKU AT60012
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUS001880
American Electrical: 11123060
Crimp Supply: 13A11015
Greenlee: 175/12
LeGrand: 377 68
Panduit: FSF82-12-C
Phoenix Contact: 3200108
Tyco AMP: 2-966 292-7
Weidmuller: 9021130000
ZF: V3AE0540 V30AE000540
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 10 AWG |
| Color: | Green |
| Material: | Tin-Plated Copper |
| L1: | 20mm (0.78") |
| L2: | 12.0mm (0.47") |
| D: | 3.9mm (0.15") |
| D1: | 3.5mm (0.14") |
| D2: | 6.3mm (0.25") |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 50A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUS001880
American Electrical: 11123060
Crimp Supply: 13A11015
Greenlee: 175/12
LeGrand: 377 68
Panduit: FSF82-12-C
Phoenix Contact: 3200108
Tyco AMP: 2-966 292-7
Weidmuller: 9021130000
ZF: V3AE0540 V30AE000540
Documents
Click to view product spec sheet:
