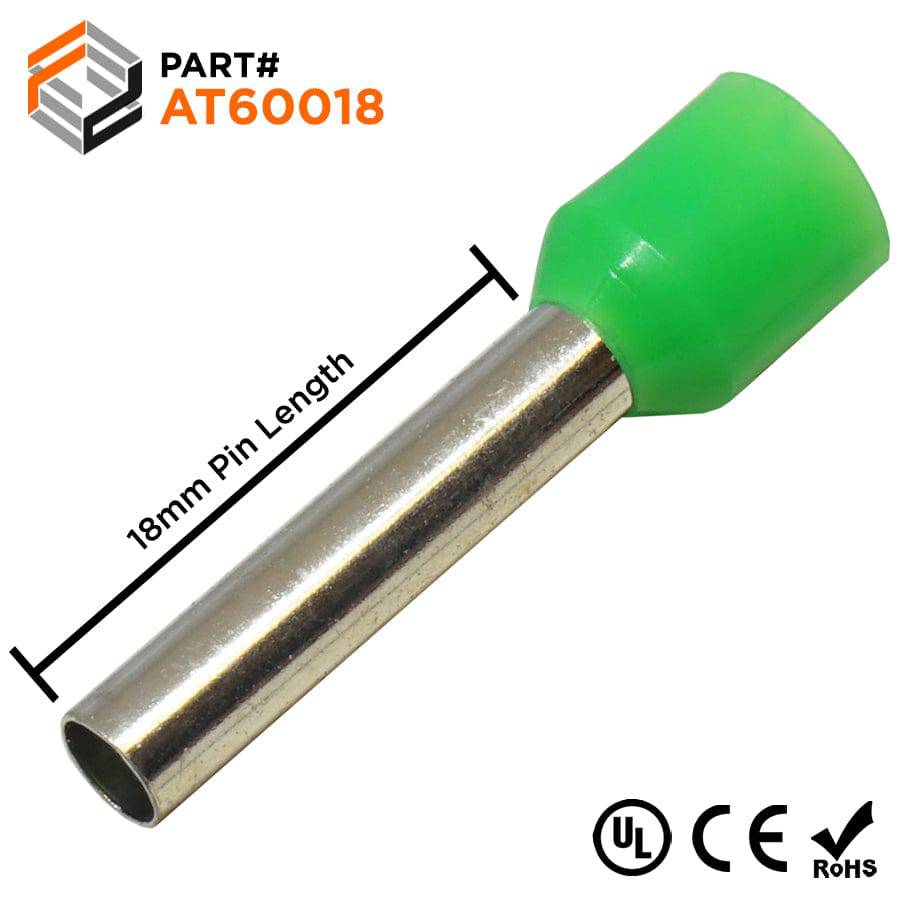

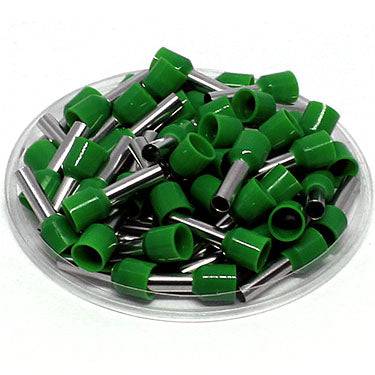

AT60018 - 10 AWG (18mm Pin) Insulated Ferrules - Green

$4.82
SKU AT60018
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 10 AWG
Color: Green
Material: Tin-Plated Copper
L1: 26mm (1.02")
L2: 18mm (0.71")
D: 3.9mm (0.15")
D1: 3.5mm (0.14")
D2: 6.3mm (0.25")
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 50A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: XUS001882
American Electrical: 11183060
Crimp Supply: 13A11016
Greenlee: 175/18
Panduit: FSF82-18-C
Phoenix Contact: 3200111
Tyco AMP: 2-966 292-8
Weidmuller: 9021140000
ZF: V3AE0553
