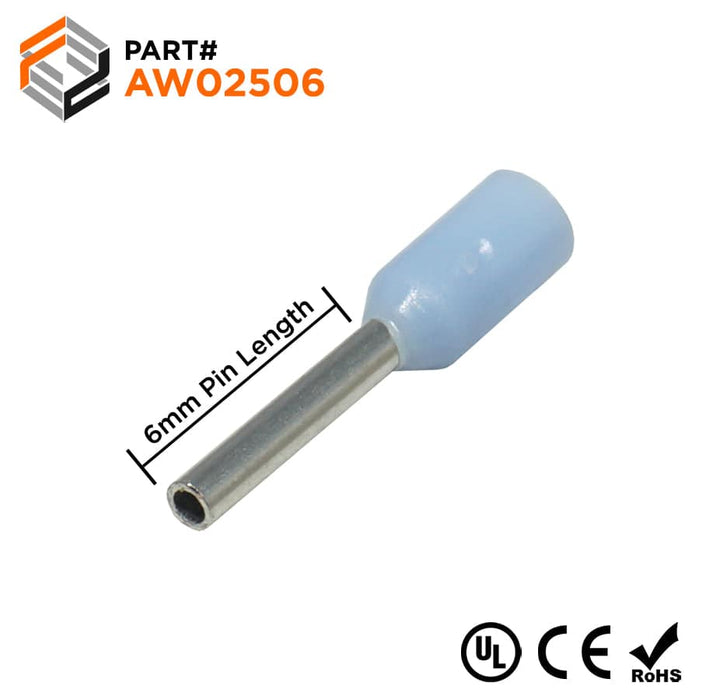

AW02506 - 24 AWG (6mm Pin) Insulated Ferrules - Light Blue
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$8.70
$0.00
-
$8.70
Current price
$8.70
SKU AW02506
Availability:
in stock, ready to be shipped
Availability:
Out of stock
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
ABB: XUSG01807
Altech Corp: 2620.0 FII2406
American Electrical: 11620025
Eclipse: 701-025
Greenlee: 167/H
LeGrand: 377 50
McMaster Carr: 7950K78, 7950K45
Phoenix Contact: 3203040
Tyco AMP: 966 066-1
Weidmuller: 9026050000 ZF: V3AE0001
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 24 AWG |
| Color: | Light Blue |
| L1: | 10.4mm (.409") |
| L2: | 6.0mm (.236") |
| D: | 1.10mm (.043") |
| D1: | 0.80mm (.031") |
| D2: | 1.6mm (.062") |
| Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 7A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:ABB: XUSG01807
Altech Corp: 2620.0 FII2406
American Electrical: 11620025
Eclipse: 701-025
Greenlee: 167/H
LeGrand: 377 50
McMaster Carr: 7950K78, 7950K45
Phoenix Contact: 3203040
Tyco AMP: 966 066-1
Weidmuller: 9026050000 ZF: V3AE0001
