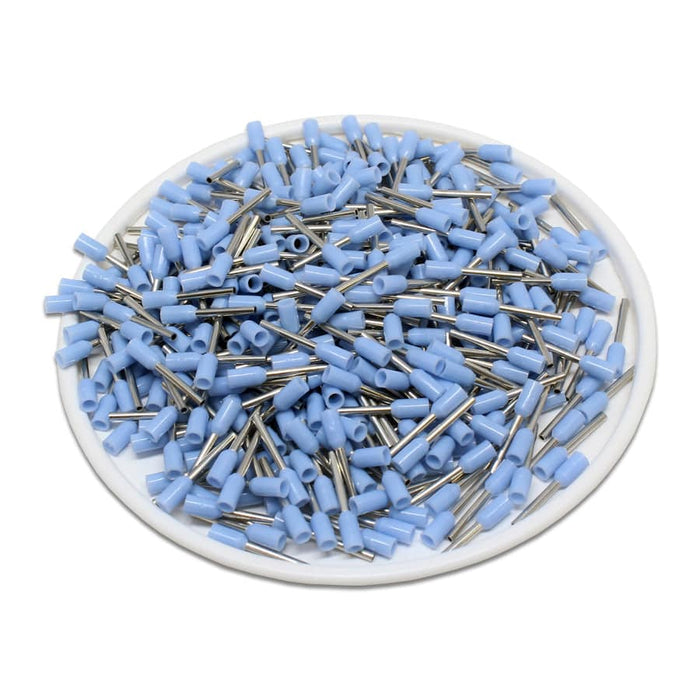

24 AWG (8mm Pin) Insulated Ferrules - Light Blue

$9.84
SKU AW02508
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 24 AWG
Color: Light Blue
L1: 12.4mm (.488")
L2: 8.0mm (.315")
D: 1.10mm (.043")
D1: 0.8mm (.031")
D2: 1.6mm (.062")
Material: Tin-Plated Copper
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 7A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:





Cross References

Cross Reference Parts:
ABB: XUSG01810
Altech Corp: 2621.0 FII2408
American Electrical: 11820025
Eclipse: 701-007
Greenlee: 167HL
McMaster-Carr: 7950K79 7950K46
Tyco AMP: 966 066-2
Weidmuller: 9025780000 9025760000
ZF: V3AE0002

Documents

Click to view product spec sheet:

Videos

Learn how to crimp a wire ferrule!
