AW05008 - 22 AWG (8mm Pin) Insulated Ferrules - Orange
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$6.99
$6.99
-
$6.99
Current price
$6.99
SKU AW05008
Availability:
in stock, ready to be shipped

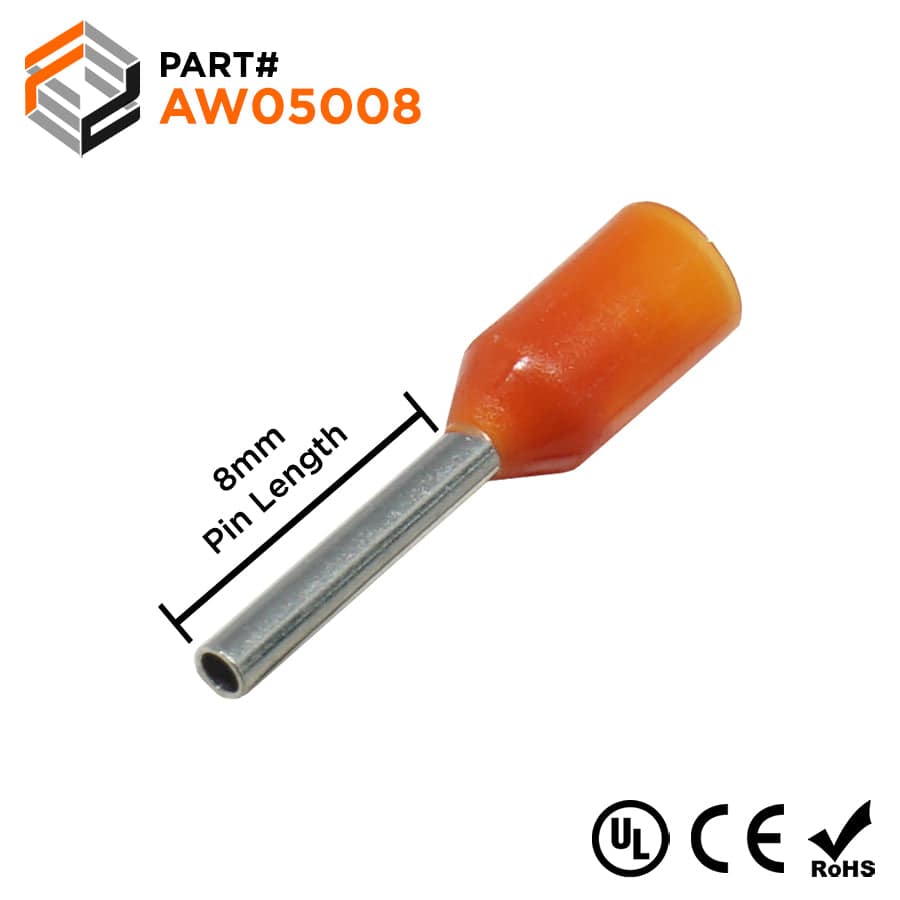

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
ABB: XUSG01833
ACI: 107661
Advance Controls Inc. 107661
AlliedElec 70228617
Altech Corp: 2201.0 FII2008
American Electrical: 1182050
AUTOMATION DIRECT: BM-00501 V30AE000006
Burndy Hubbell: 10097994 YF2208IW
Eclipse: 701-097
GE Renewable Energy: 104W4400P003
Greenlee: 169/O
Phoenix Contact: 3202902 & 3201123
RS Components: 458746
SPC Technology: SCP4474 84N2008
Thomas Betts: F4000
Tyco AMP: 966 066-7
Weidmuller: 09004560000 & 09004270000 & 069070000
ZF: V3AE0006 & V3AE0074 & V30AE000006
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 22 AWG |
| Color: | Orange |
| L1: | 14.0mm (0.551") |
| L2: | 8.0mm (0.315") |
| D: | 1.3mm (0.051") |
| D1: | 1.0mm (0.039") |
| D2: | 2.6mm (0.102") |
| UL Approved: | Yes |
| CE Certfied: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105°C (221°F) - 600 Volts |
| Max Electrical Current: | 12A |
Cross References
Cross Reference Parts:ABB: XUSG01833
ACI: 107661
Advance Controls Inc. 107661
AlliedElec 70228617
Altech Corp: 2201.0 FII2008
American Electrical: 1182050
AUTOMATION DIRECT: BM-00501 V30AE000006
Burndy Hubbell: 10097994 YF2208IW
Eclipse: 701-097
GE Renewable Energy: 104W4400P003
Greenlee: 169/O
Phoenix Contact: 3202902 & 3201123
RS Components: 458746
SPC Technology: SCP4474 84N2008
Thomas Betts: F4000
Tyco AMP: 966 066-7
Weidmuller: 09004560000 & 09004270000 & 069070000
ZF: V3AE0006 & V3AE0074 & V30AE000006
