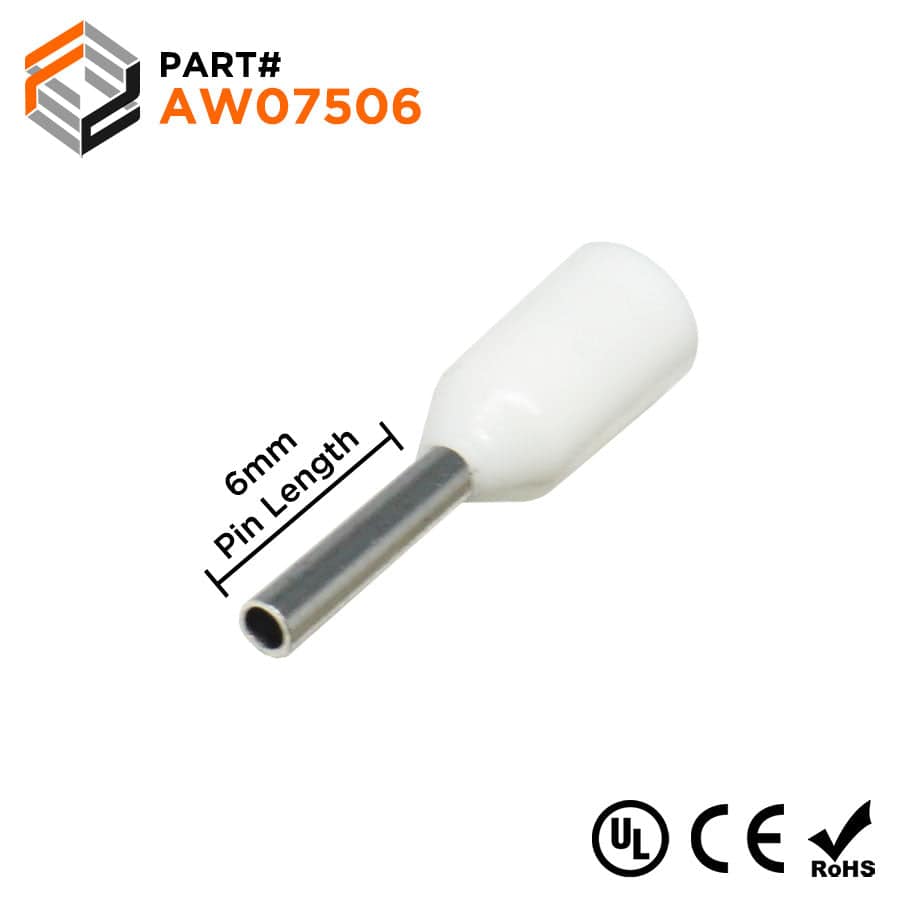

AW07506 - 20 AWG (6mm Pin) Insulated Ferrules - White

Original price $0.00 - Original price $0.00
Original price $0.00
$0.00 - $7.22
Current price $7.22
SKU AW07506
in stock, ready to be shipped
Out of stock
Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 20 AWG
Color: White
L1: 12.4mm (0.49")
L2: 6.0mm (0.236")
D: 1.57mm (0.062")
D1: 1.2mm (0.047")
D2: 2.8mm (0.110")
UL Approved: Yes
CE Certfied: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 17A
Material: Tin-Plated Copper

Technical Drawing:

Cross References

ABB: XUSG01838
Altech Corp: 2398.0 FII1806W
American Electrical: 1162075
Burndy Hubbell: 10097997 YF2006IW
Eclipse: 701-029
Greenlee: 170/WK
Phoenix Contact: 3201314
SPC Technology: SPC4476 84N2010
Tyco AMP: 1-966 066-9
Weidmuller: 9028280000 04096000
ZF: V3AE0008


Click to view data sheet


How to Crimp a Wire Ferrule?
