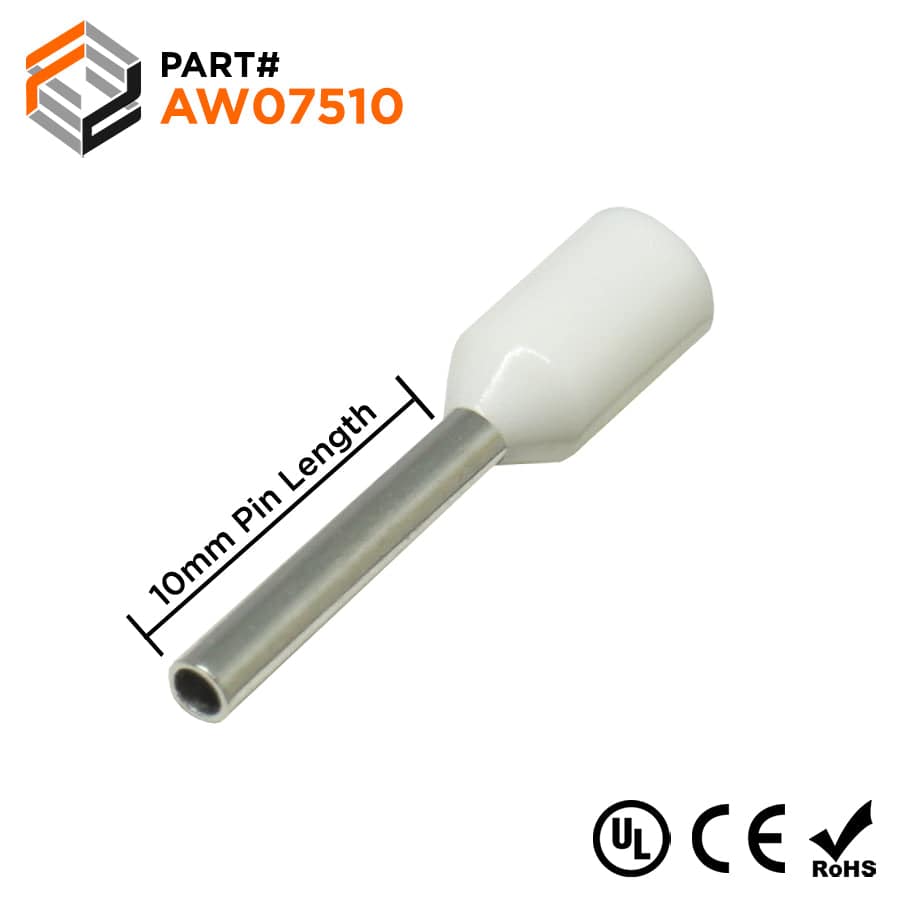

AW07510 - 20 AWG (10mm Pin) Insulated Ferrules - White

Original price $0.00 - Original price $0.00
Original price $0.00
$7.37
$7.37 - $7.37
Current price $7.37
SKU AW07510
Availability:
in stock, ready to be shipped

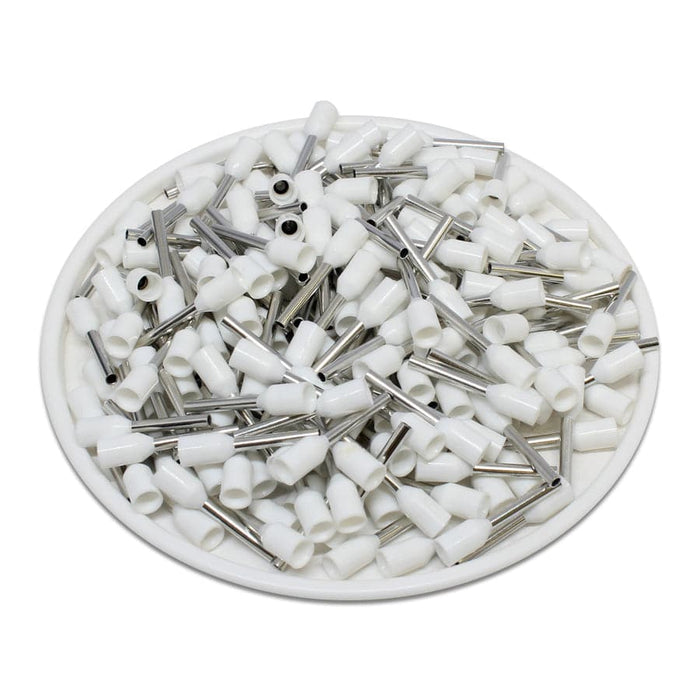

Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 20 AWG
Color:  White
L1:  16.0mm (.630")
L2:  10.0mm (.394")
D:  1.57.mm (.062")
D1:  1.2mm (.047")
D2:  2.8mm (.110")
Material:  Tin Plated Copper
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105°C (221°F) 600 Volts
Max Electrical Current: 17A

Product Drawing:

Cross References

Cross Reference Parts:

ABB: XUSG01843
Altech Corp: FII1810W
American Electrical: 11102075
Eclipse: 701-013
Greenlee: 170/WH
SPC Technology: SPC4478 84N2012
Tyco AMP: 2-966 066-0
Weidmuller: 9028290000 9025860000
ZF: V3AE0010

Documents

Click to view product spec sheet:


Videos

Watch to see how to crimp a wire ferrule!
