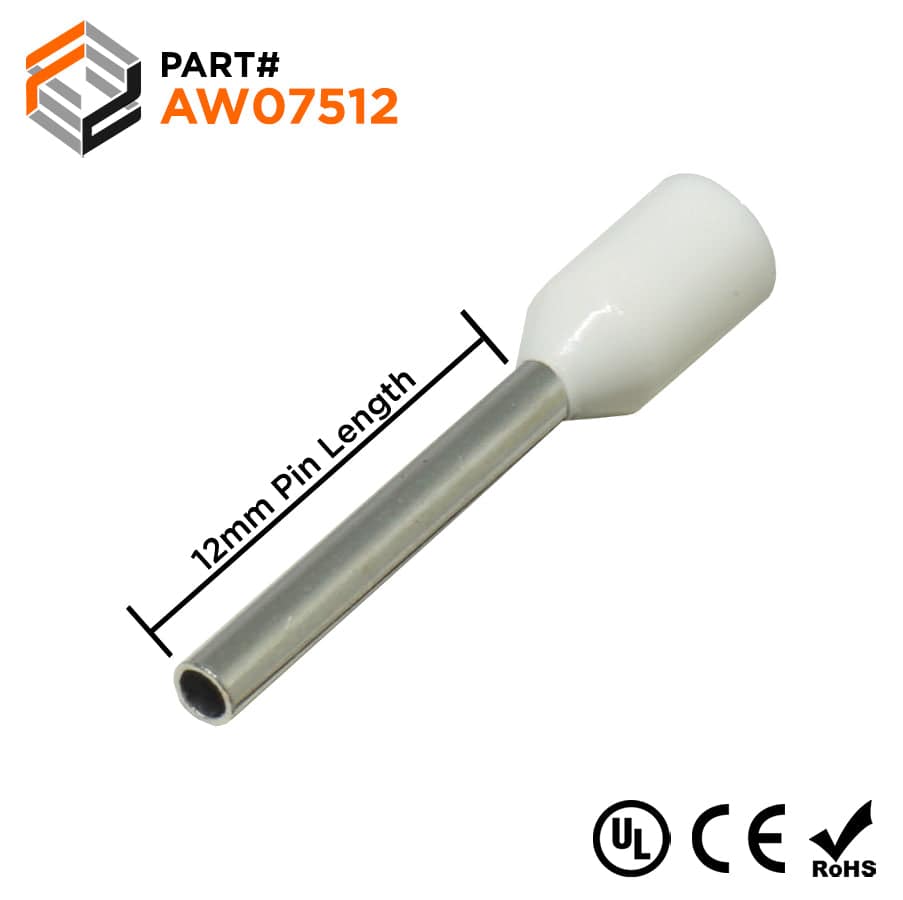

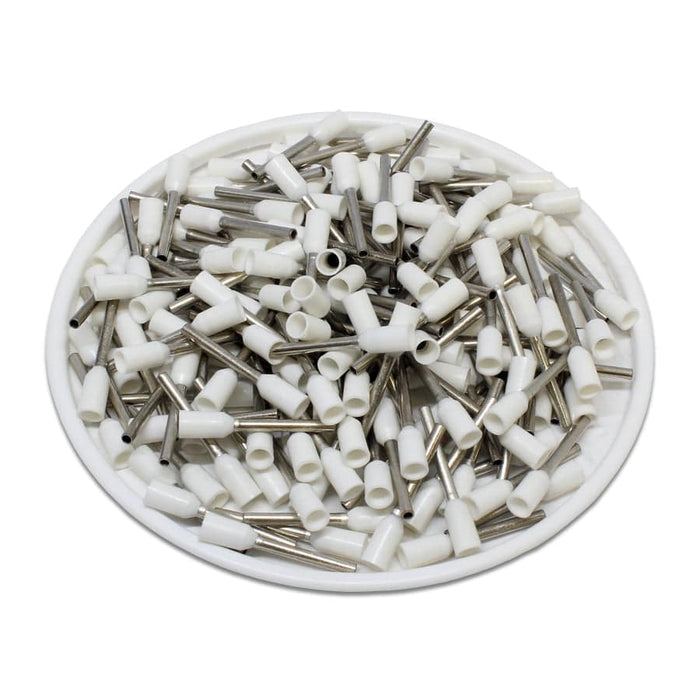

AW07512 - 20 AWG (12mm Pin) Insulated Ferrules - White
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$7.68
$7.68
-
$7.68
Current price
$7.68
SKU AW07512
Availability:
Out of stock
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Altech Corp: FII1812W
American Electrical: 11122075
Eclipse: 701-030
Greenlee: 170/WL
SPC Technology: SPC4479 84N2013
Tyco AMP: 2-966 066-1
Weidmuller: 9028300000
ZF: V3AE0011
Dimensions & Features:
| Wire Size: | 20 AWG |
| Color: | White |
| L1: | 18mm (0.709") |
| L2: | 12.0mm (0.472") |
| D: | 1.57mm (0.062") |
| D1: | 1.2mm (0.047") |
| D2: | 2.8mm (0.110") |
| UL Approved: | Yes |
| CE Certfied: | Yes |
| RoHS Compliant: | Yes |
| Max Electrical Rating: | 105oC (221oF) - 600 Volts |
| Max Electrical Current: | 17A |
| Material: | Tin-Plated Copper |
Technical Drawing:
Cross References
ABB: XUSG01846Altech Corp: FII1812W
American Electrical: 11122075
Eclipse: 701-030
Greenlee: 170/WL
SPC Technology: SPC4479 84N2013
Tyco AMP: 2-966 066-1
Weidmuller: 9028300000
ZF: V3AE0011
