20 AWG (18mm Pin) Insulated Ferrules - White

$10.60
SKU AW07518
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 20 AWG
Color: White

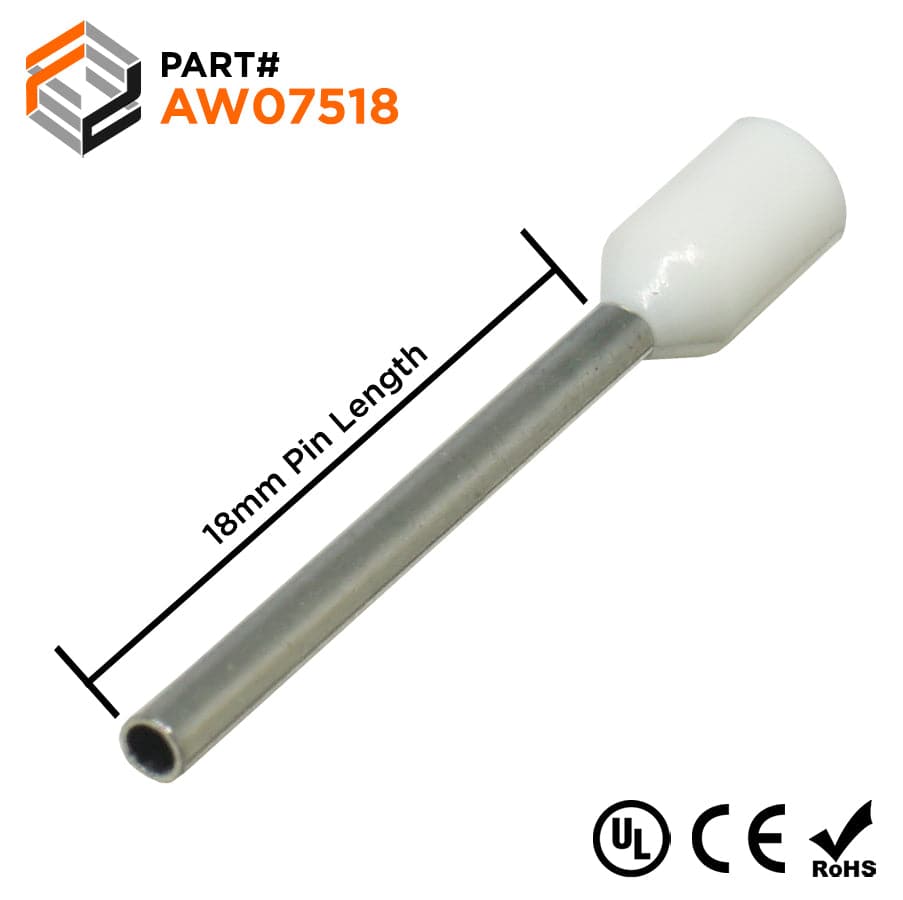

L1: 24.3mm (0.957")
L2: 18.0mm (0.709")
D: 1.57mm (0.062")
D1: 1.2mm (0.047")
D2: 2.8mm (0.110")
UL Approved: Yes
CE Certfied: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105oC (221oF) - 600 Volts
Max Electrical Current: 17A
Material: Tin-Plated Copper

Technical Drawing:


Cross References

None:

Documents

Click to view data sheet

Videos

How to Crimp a Wire Ferrule?
