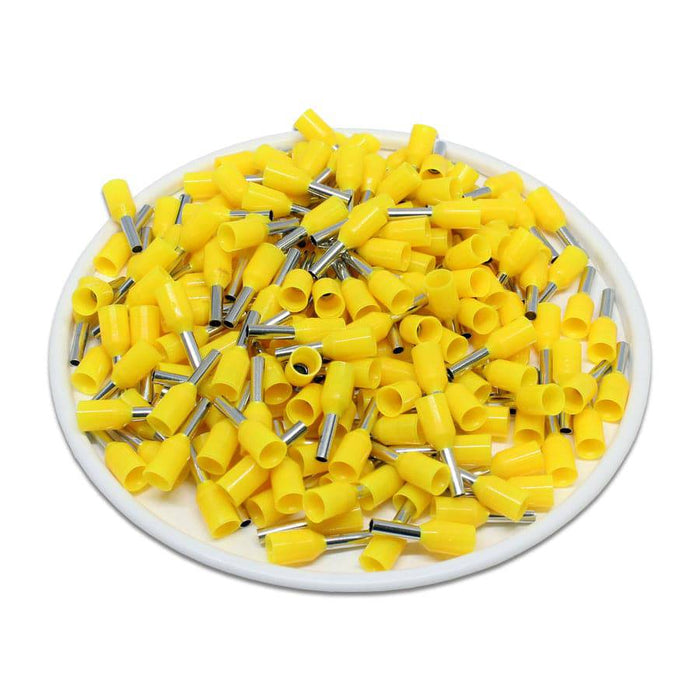

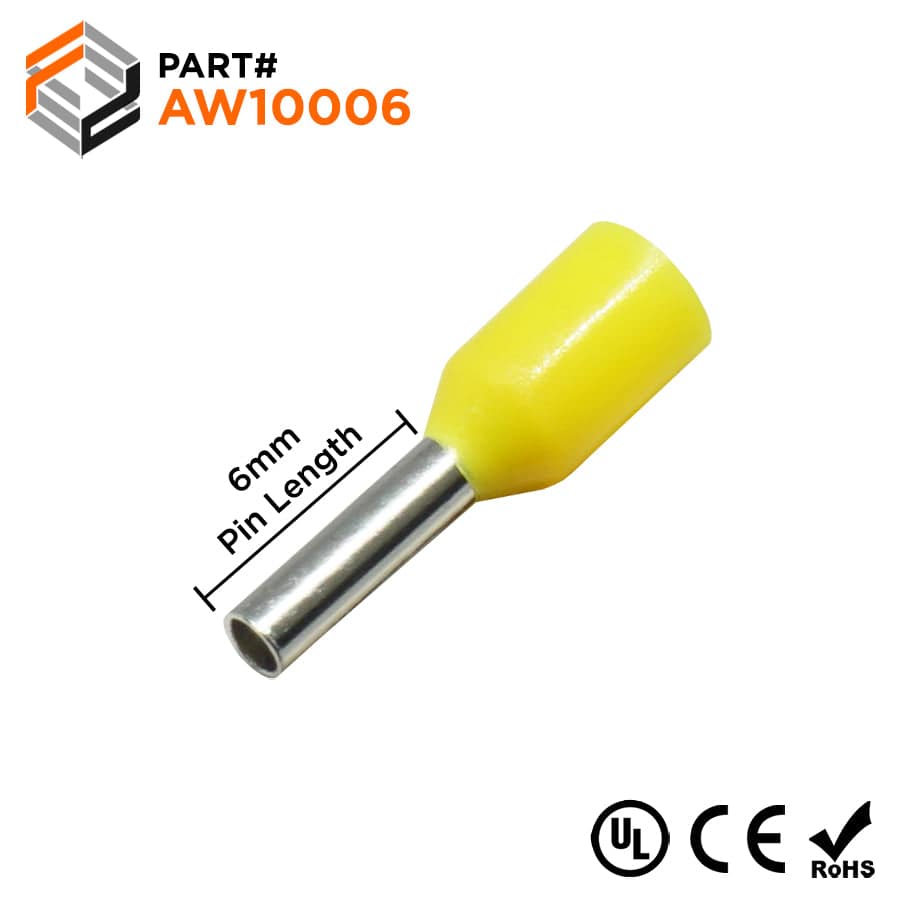

AW10006 - 18AWG (6mm Pin) Insulated Ferrules - Yellow
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$7.22
$7.22
-
$7.22
Current price
$7.22
SKU AW10006
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
ABB: XUSG01849
Altech Corp: 2399.0 FII1806Y
American Electrical: 1162010
Eclipse: 701-031
Greenlee: 171/GK
Phoenix Contact: 3201327
SPC Technology: SPC4480 84N2014
Tyco AMP: 2-966 066-2
Weidmuller: 9028310000
ZF: V3AE0012
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
| Wire Size: | 6 AWG |
| Color: | Yellow |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 18A |
| L1: | 12mm (0.47") |
| L2: | 6.0mm (0.23") |
| D: | 1.7mm (0.06") |
| D1: | 1.4mm (0.05") |
| D2: | 2.8mm (0.11") |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:ABB: XUSG01849
Altech Corp: 2399.0 FII1806Y
American Electrical: 1162010
Eclipse: 701-031
Greenlee: 171/GK
Phoenix Contact: 3201327
SPC Technology: SPC4480 84N2014
Tyco AMP: 2-966 066-2
Weidmuller: 9028310000
ZF: V3AE0012
Documents
Click to view product spec sheet:
