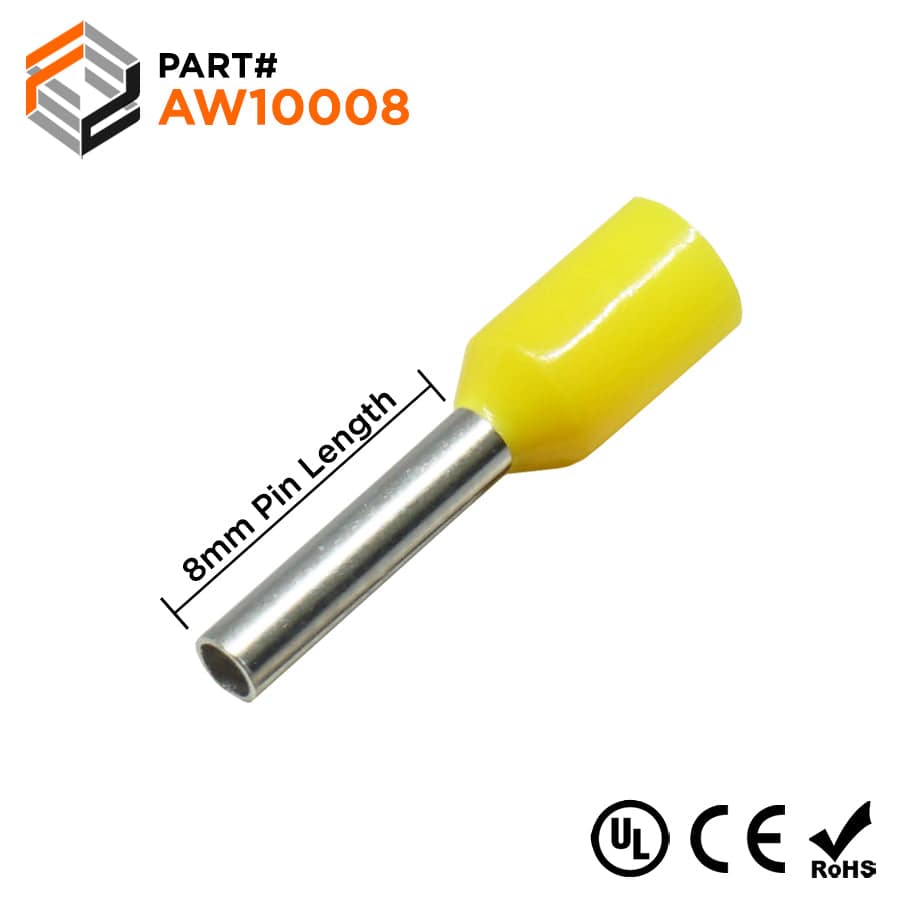

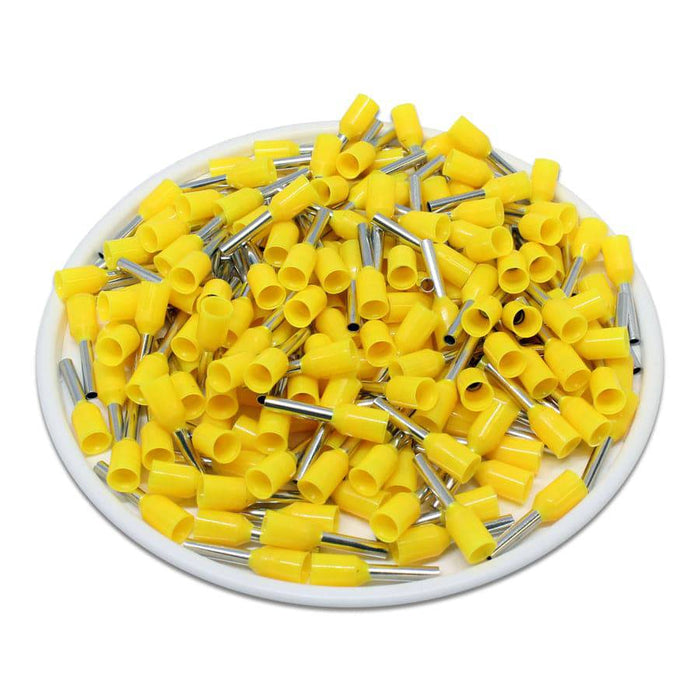

AW10008 - 18AWG (8mm Pin) Insulated Ferrules - Yellow

$6.99
SKU AW10008
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 18 AWG UL Approved: Yes
Color: Yellow CE Certified: Yes
L1: 14.4mm (.57") RoHS Compliant: Yes
L2: 8.0mm (.315") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 1.7mm (.067") Max Electrical Current: 18A
D1: 1.4mm (.055") Material: Tin Plated Copper
D2: 2.8mm (.110")

TECHNICAL DRAWING

Cross Reference Parts:

ABB: XUSG01851
ACI: 107662
Altech Corp: 2203.0 FII1808Y
American Electrical: 1182010
AUTOMATION DIRECT: BM-00503 - V30AE000013
Eclipse: 701-014
Greenlee: 171/G
Phoenix Contact: 3202915 & 3201097
SPC Technology: SPC4481 84N2015
Thomas Betts: F4002 & F2028
Tyco AMP: 1-966 066-0
Weidmuller: 9025710000
ZF: V3AE0013 & V30AE000013

Click to view data sheet

How to Crimp a Wire Ferrule?
