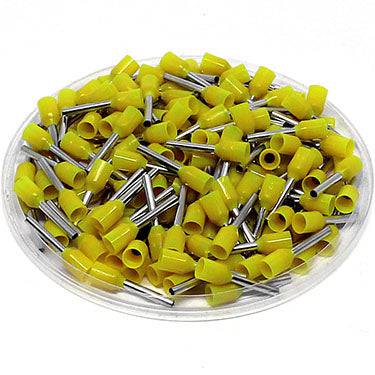

AW10010 - 18AWG (10mm Pin) Insulated Ferrules - Yellow

$7.37
SKU AW10010
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 18 AWG
Color: Yellow

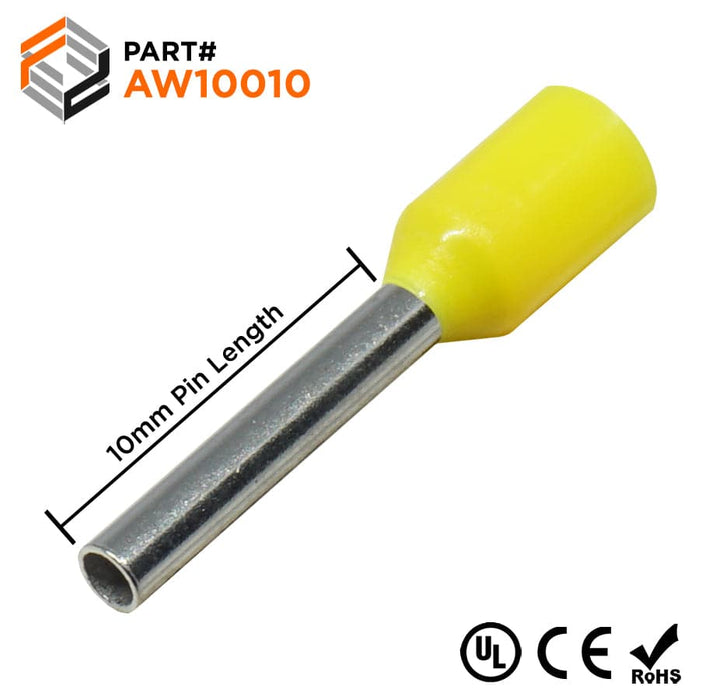

L1: 16mm (.630")
L2: 10mm (.394")
D: 1.7mm (.067")
D1: 1.4mm (.055")
D2: 2.8mm (.110")
Material: Tin-Plated Copper
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 18A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:





Cross References

Cross Reference Parts:
ABB: XUSG01853
Altech Corp: FII1810Y
American Electrical: 11102010
Eclipse: 701-023
Greenlee: 171/GH
SPC Technology: SPC4482 84N2016
Tyco AMP: 2-966 066-3
Weidmuller: 9025950000
ZF: V3AE0014
