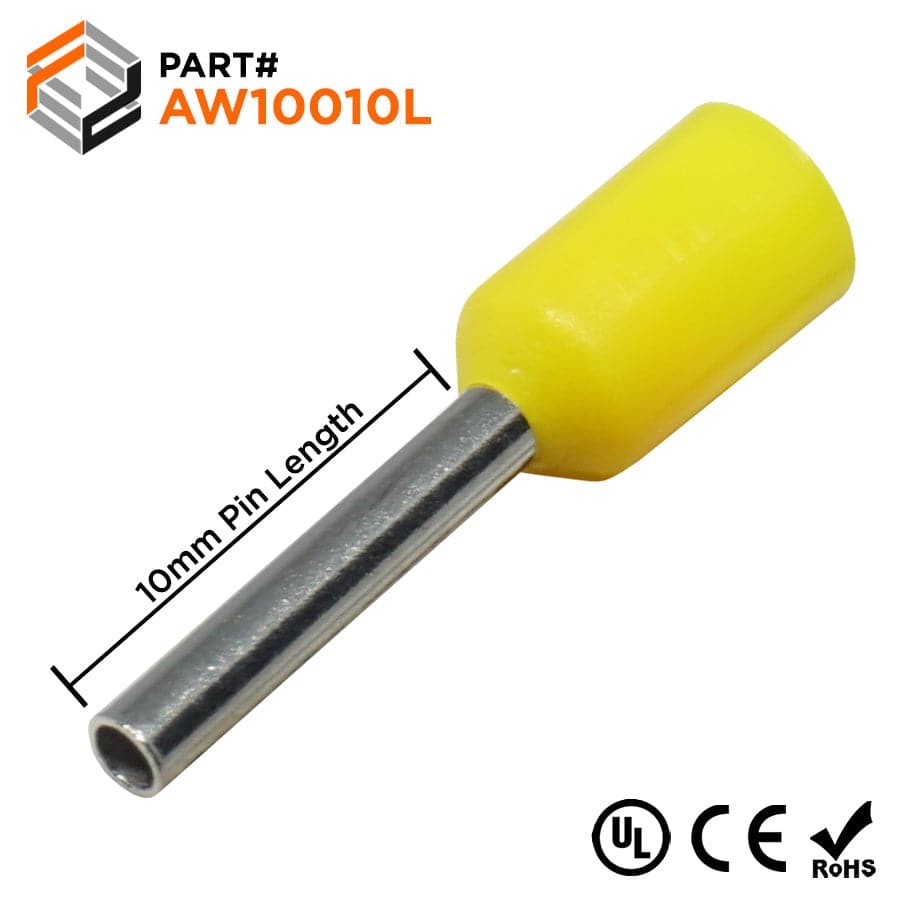

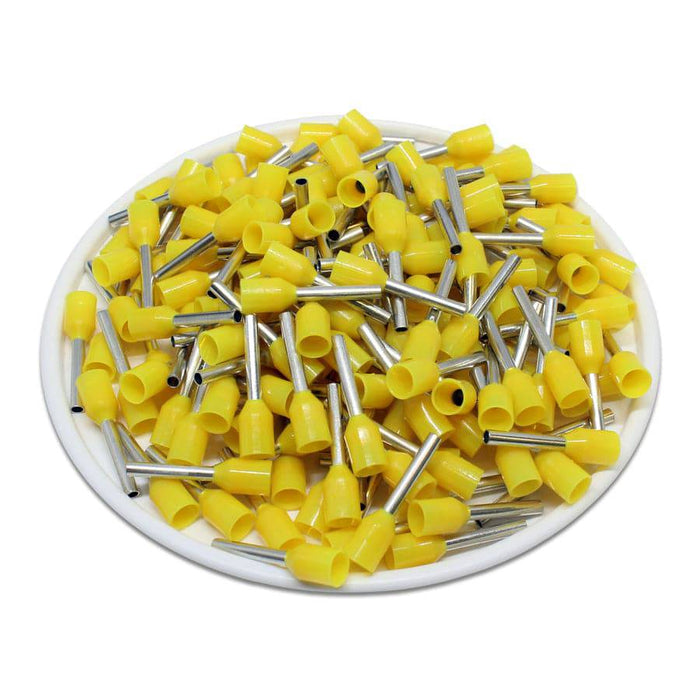

AW10010L - 18AWG (10mm Pin) Insulated Ferrules - Yellow - Large Cap
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
|DIMENSIONS AND FEATURES|
|Wire Size:||18 AWG||UL Approved:||Yes|
|L1:||16.0mm (.630")||RoHS Compliant:||Yes|
|L2:||10.0mm (.394")||Max Electrical Rating:||105°C (221°F) - 600 Volts|
|D:||1.7mm (.067")||Max Electrical Current:||18A|
|D1:||1.4mm (.055")||Material:||Tin Plated Copper|
Cross Reference Parts:
How to Crimp a Wire Ferrule?
