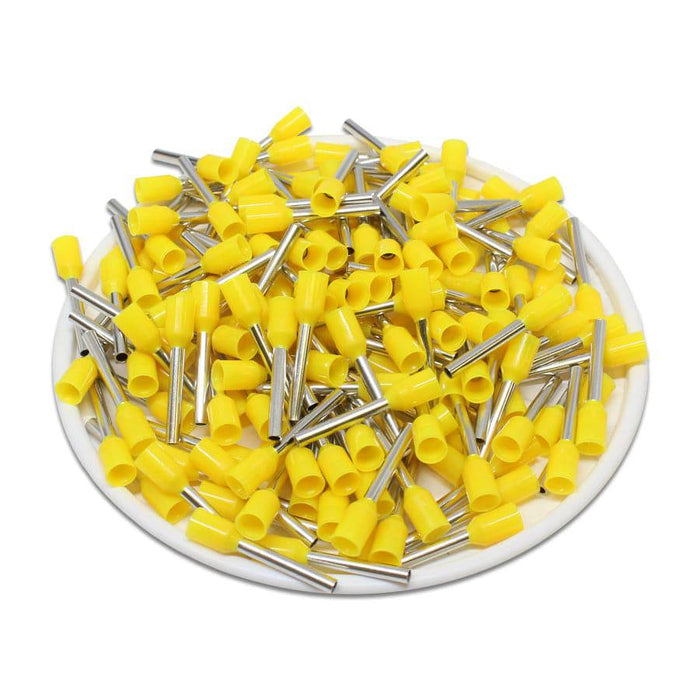

AW10012 - 18AWG (12mm Pin) Insulated Ferrules - Yellow

$7.68
SKU AW10012
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 18 AWG
Color: Yellow

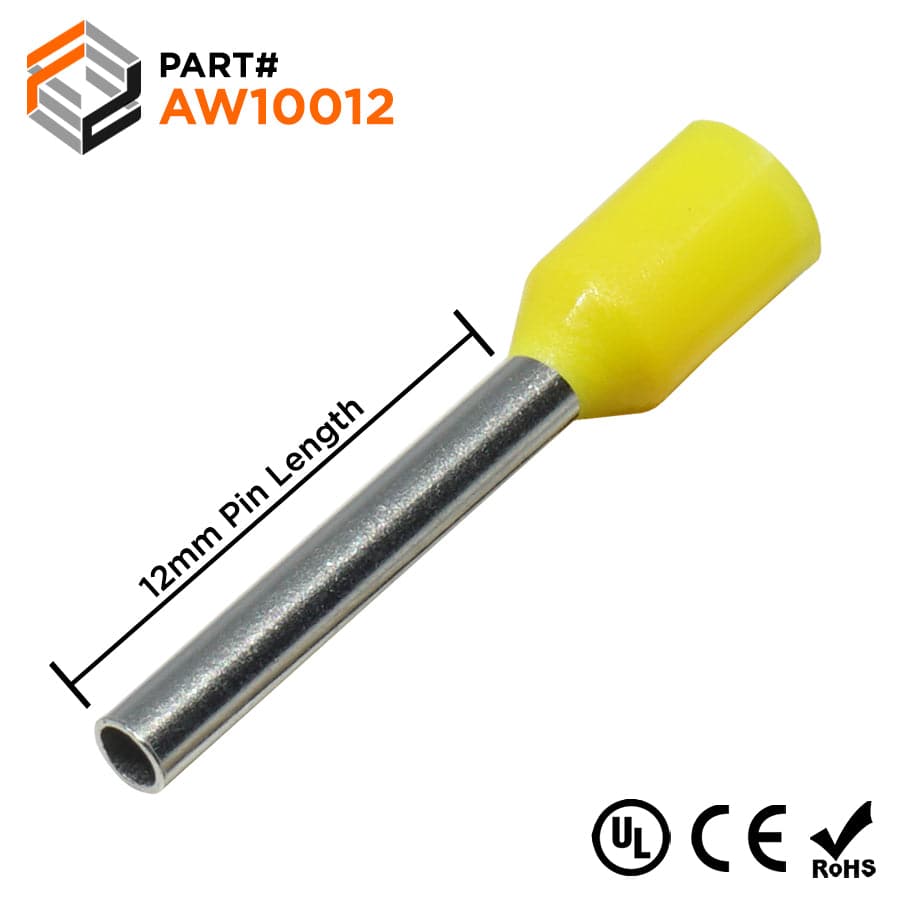

L1: 18mm (.709")
L2: 12mm (.472")
D: 1.7mm (.067")
D1: 1.4mm (.055")
D2: 2.8mm (.110")
Material: Tin-Plated Copper
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 18A
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:





Cross References

Cross Reference Parts:
ABB: XUSG01856
Altech Corp: FII1812Y
American Electrical: 11122010
Crimp Supply: 13A11007
Eclipse: 701-032
Greenlee: 171/GL
SPC Technology: SPC4483 84N2017
Tyco AMP: 2-966 066-4
Weidmuller: 9028340000
ZF: V3AE0015
