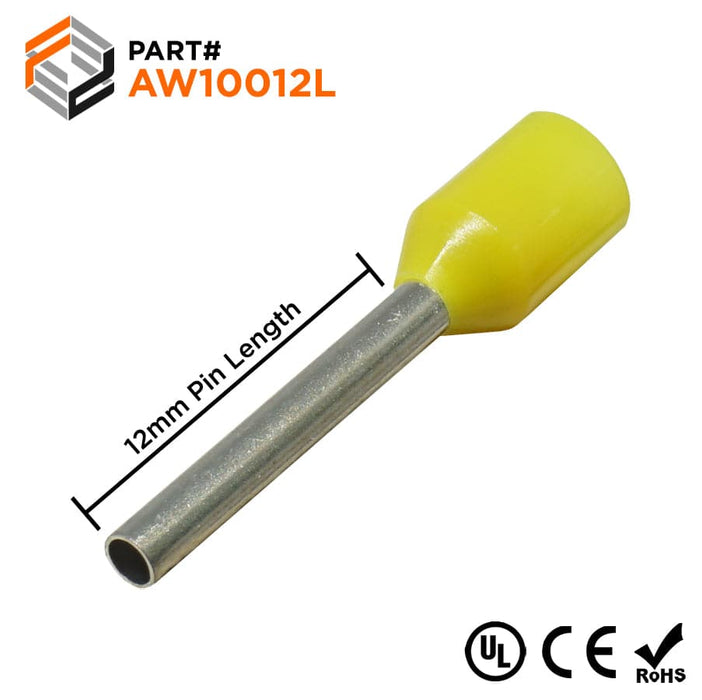

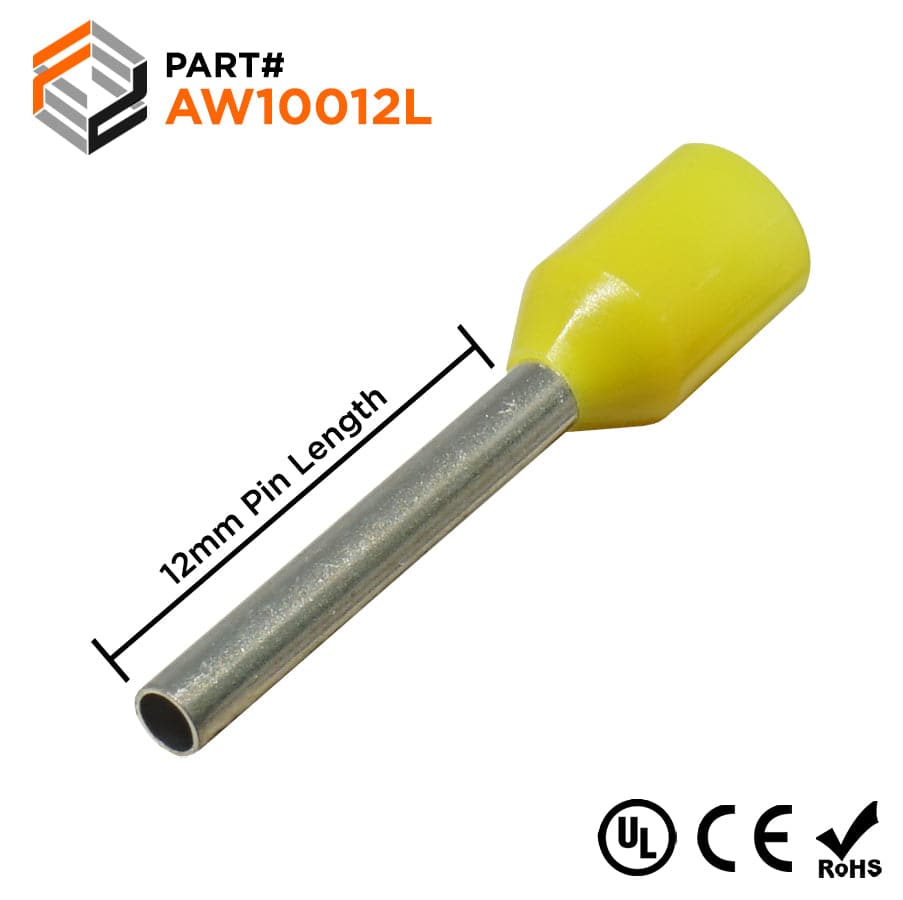

AW10012L - 18AWG (12mm Pin) Insulated Ferrules - Yellow - Large Cap

Original price $0.00 - Original price $0.00
Original price $0.00
$10.30
$10.30 - $10.30
Current price $10.30
SKU AW10012L
Availability:
in stock, ready to be shipped

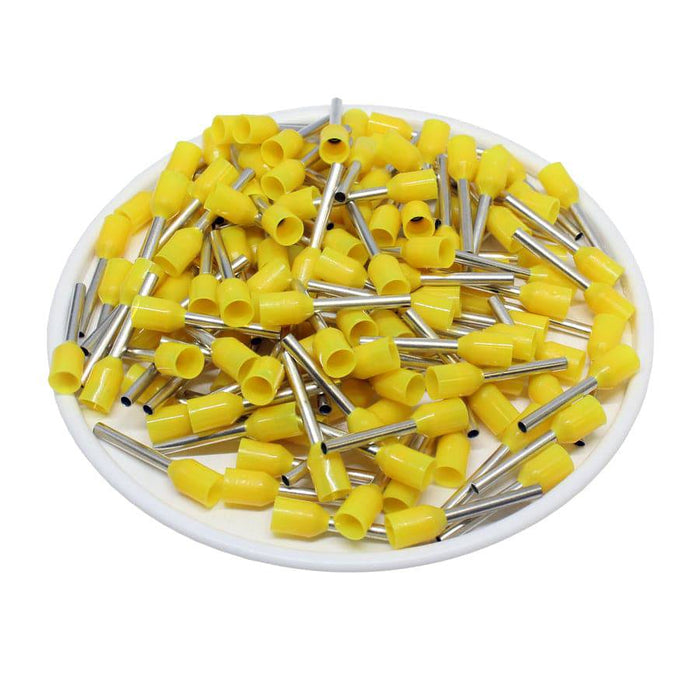

Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 18 AWG
Color: Yellow
L1: 18.5mm (0.73")
L2: 12.0mm (0.32")
D: 1.7mm (0.067")
D1: 1.4mm (0.055")
D2: 3.3mm (0.13")
Material: Tin Plated Copper
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
Max Electrical Rating: 105°C (221°F) - 600V
Max Electrical Current: 18A

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!
