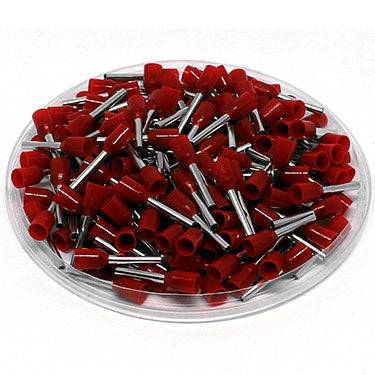

AW15008 - 16AWG (8mm Pin) Insulated Ferrules - Red

$6.99
SKU AW15008
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 16 AWG UL Approved: Yes
Color: Red CE Certified: Yes

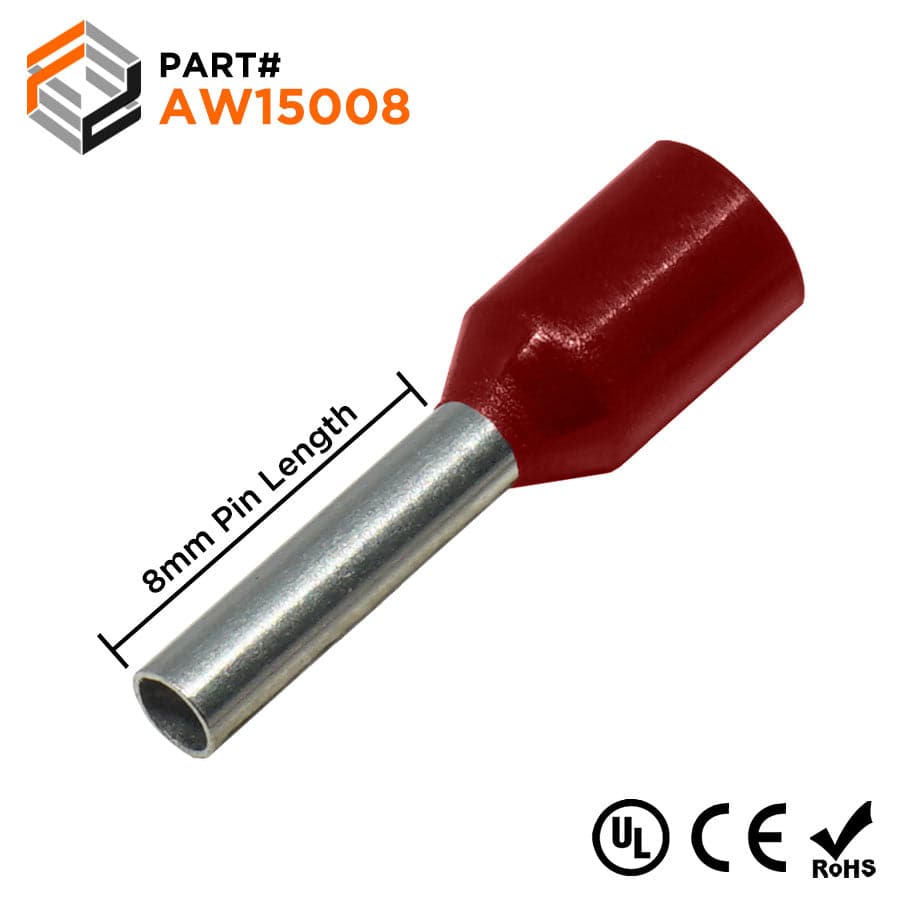

L1: 14.5mm (0.57") RoHS Compliant: Yes
L2: 8mm (0.31") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 2mm (0.07") Max Electrical Current: 18A
D1: 1.7mm (0.06") Material: Tin Plated Copper
D2: 3.5mm (0.13")

TECHNICAL DRAWING

Cross Reference Parts:

ABB: 30446107
ACI: 107664
Altech Corp: 2848.0 2208.0 FID1210
American Electrical: 11101040 11102040
AUTOMATION DIRECT: BM-00508
Eclipse: 701-036
Elecdirect: FER-12-10D
Greenlee: 174/GR
McMaster-Carr: 7950K69 7950K31
Panduit: FSD81-10-D
Phoenix Contact: 3200535
SPC Technology: SPC4523 84N2057
TE Connectivity: 1-966067-9
Thomas Betts: F2038
Tyco AMP: 3-966 066-0
WAGO: 216-207
Weidmuller: 9026010000 9019190000
Wieland: 06.600.2727.0
ZF: V3AE0055

Click to view data sheet

How to Crimp a Wire Ferrule?
