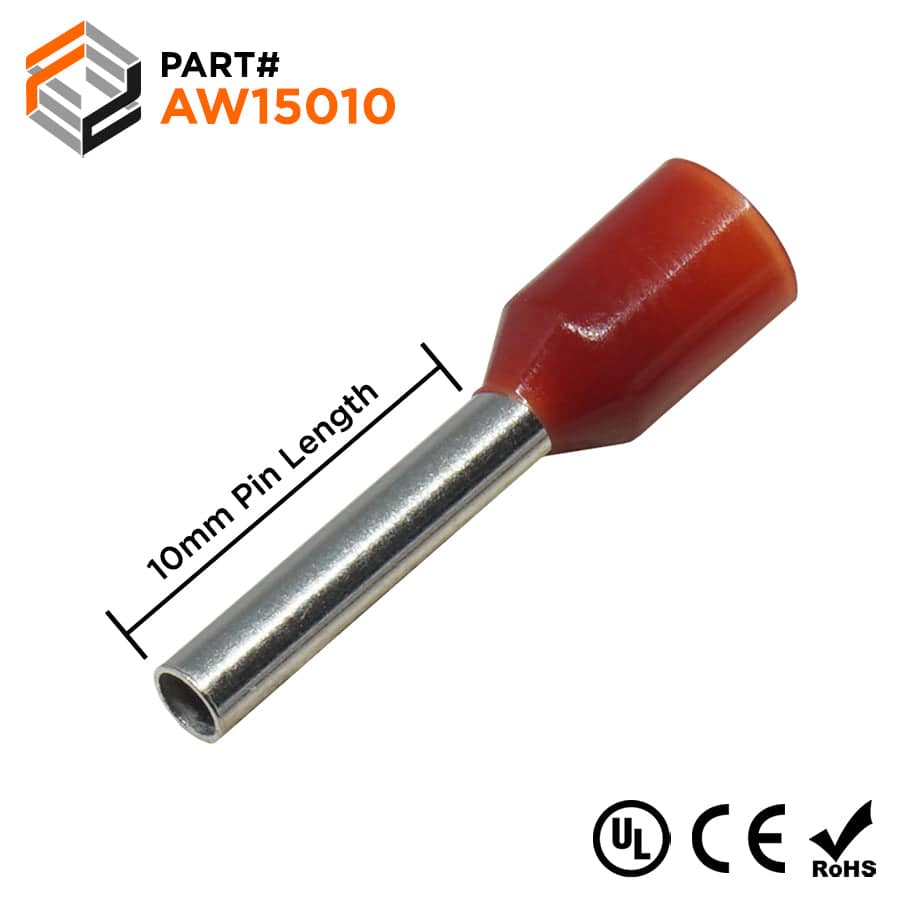

AW15010 - 16AWG (10mm Pin) Insulated Ferrules - Red

$7.37
SKU AW15010
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 16 AWG UL Approved: Yes
Color: Red CE Certified: Yes
L1: 16.0mm (.630") RoHS Compliant: Yes
L2: 10.0mm (.394") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 2.0mm (.079") Max Electrical Current: 18A
D1: 1.7mm (.067") Material: Tin Plated Copper
D2: 3.5mm (.138")

TECHNICAL DRAWING

Cross Reference Parts:

ABB: XUSG01860
Altech Corp: 2400.0 FII1610
American Electrical: 11102015
AUTOMATION DIRECT: BM-005041
Eclipse: 701-024
Greenlee: 172/RH
SPC Technology: SPC4486 84N2020
Tyco AMP: 1-966 066-1
Weidmuller: 9028350000 063510000
ZF: V3AE0017 V30AE000017

Click to view data sheet

How to Crimp a Wire Ferrule?
