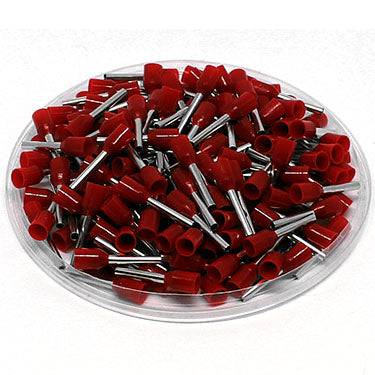

AW15012L - 16AWG (12mm Pin) Insulated Ferrules - Red - Large Cap

Original price $0.00 - Original price $0.00
Original price $0.00
$10.38
$10.38 - $10.38
Current price $10.38
SKU AW15012L
Availability:
in stock, ready to be shipped
Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 16 AWG
Color: Black
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 18A
L1: 18mm (0.71")
L2: 12.0mm (0.47")
D: 2.0mm (0.07")
D1: 1.7mm (0.06")
D2: 3.8mm (0.15")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
