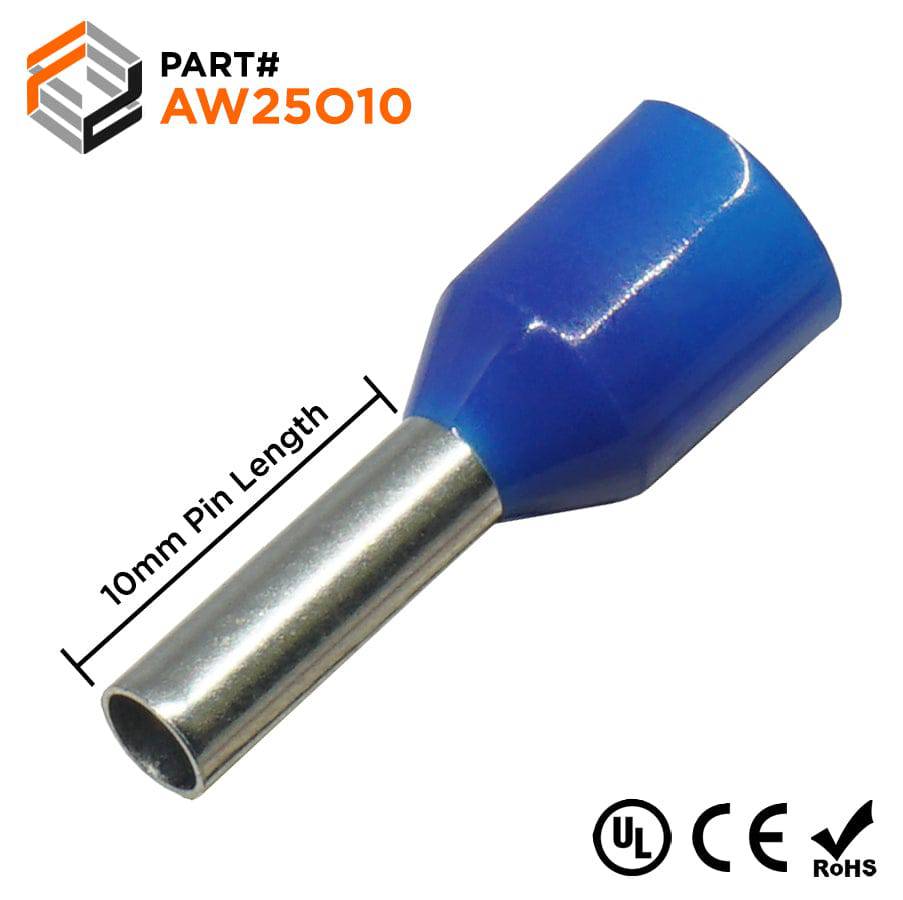

AW25010 - 14AWG (10mm Pin) Insulated Ferrules - Blue
PRODUCT DESCRIPTION | |||
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one. |
|||
DIMENSIONS AND FEATURES | |||
Wire Size: | 14 AWG | UL Approved: | Yes |
Color: | Blue | CE Certified: | Yes |
L1: | 17.4mm (.685") | RoHS Compliant: | Yes |
L2: | 10.0mm (.394") | Max Electrical Rating: | 105°C (221°F) - 600 Volts |
D: | 2.5mm (.098") | Max Electrical Current: | 30A |
D1: | 2.2mm (.087") | Material: | Tin Plated Copper |
D2: | 4.2mm (.165") | ||
TECHNICAL DRAWING |
|||
![]() |
Cross Reference Parts:
Altech Corp: 2401.0 FID1410
Phoenix Contact: 3203147
WAGO: 216-246
Weidmuller: 9036220000
ZF: V3AE3702
How to Crimp a Wire Ferrule?
