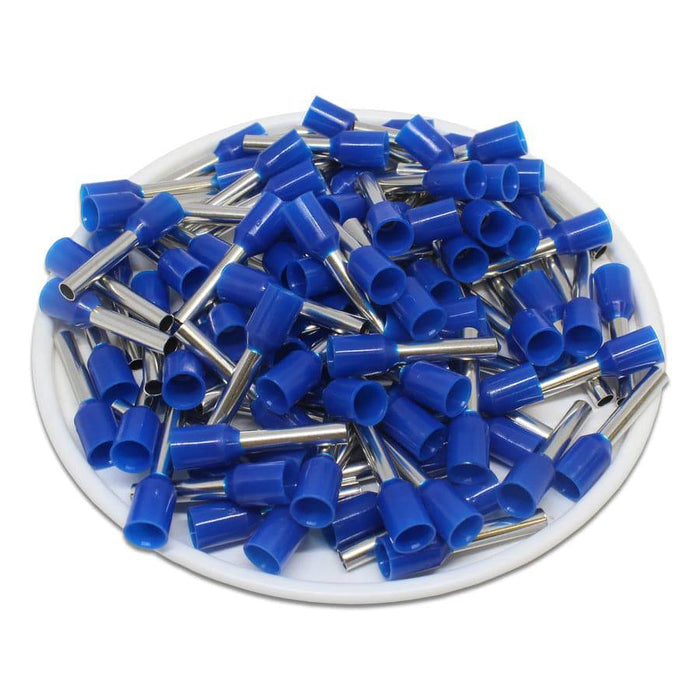

AW25012 - 14AWG (12mm Pin) Insulated Ferrules - Blue

$8.92
SKU AW25012
Piece Quantity
PRODUCT DESCRIPTION

A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

DIMENSIONS AND FEATURES
Wire Size: 14 AWG UL Approved: Yes
Color: Blue CE Certified: Yes
L1: 18.0mm (.709") RoHS Compliant: Yes
L2: 12.0mm (.472") Max Electrical Rating: 105°C (221°F) - 600 Volts
D: 2.5mm (.098") Max Electrical Current: 30A
D1: 2.2mm (.087") Material: Tin Plated Copper
D2: 4.2mm (.165")

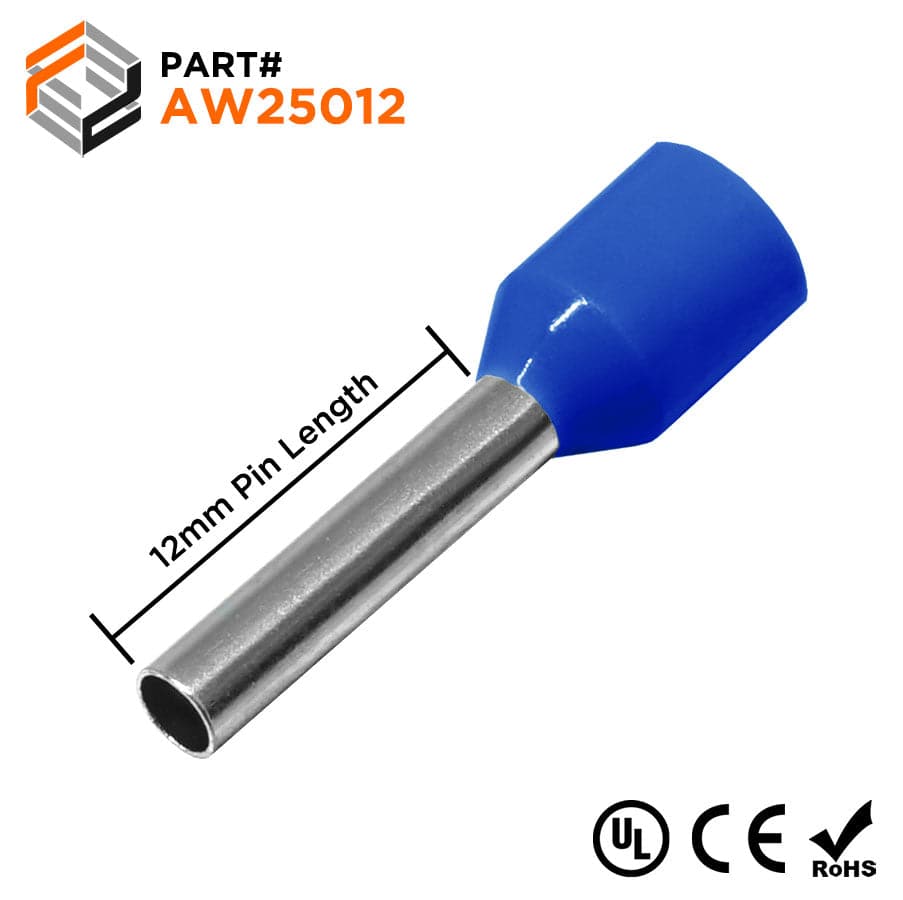

TECHNICAL DRAWING

Cross Reference Parts:


ABB: XUSD01870
Altech Corp: 2846.0 2401.0 FID1412
American Electrical: 11122025 - 11121025
AUTOMATION DIRECT: BM-005061
Burndy: YF1412IW
Eclipse: 701-034
Elecdirect: FER-14-12D
Greenlee: 173/BH
McMaster-Carr: 7950K98 7950K28
Panduit: FSD80-12-D
Phoenix Contact: 3200962
SPC Technology: SPC4521 84N2055
Thomas Betts: F2036
Tyco AMP: 2-966 066-8
WAGO: 216-266
Weidmuller: 9019170000
ZF: V3AE0053 V30AE000053

Click to view data sheet

How to Crimp a Wire Ferrule?
