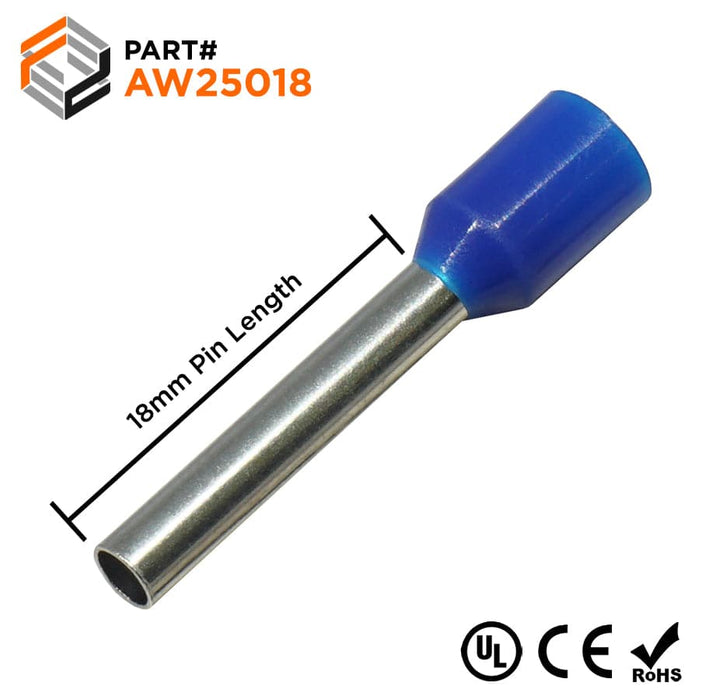

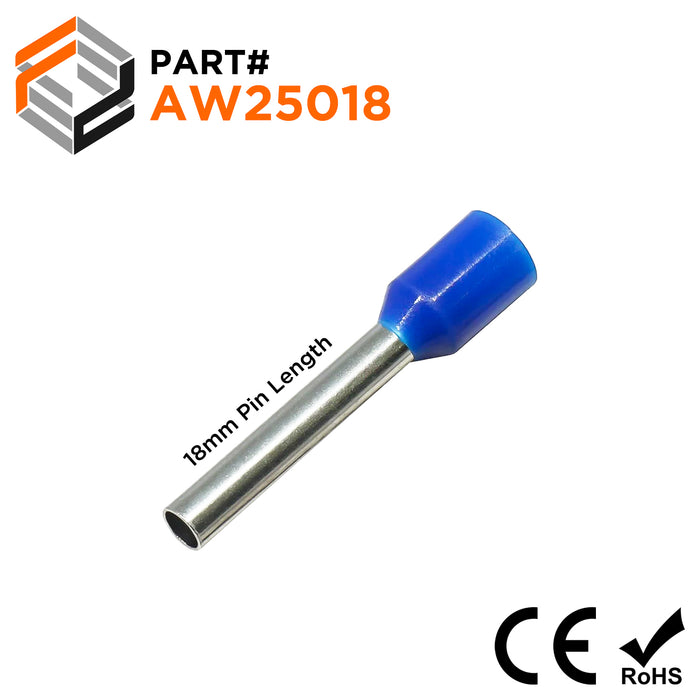

AW25018 - 14AWG (18mm Pin) Insulated Ferrules - Blue

$12.19
SKU AW25018
Piece Quantity
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 14 AWG
Color: Blue
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 30A
L1: 24.0mm (0.94")
L2: 18.0mm (0.71")
D: 2.5mm (0.09")
D1: 2.2mm (0.08")
D2: 4.2mm (0.18")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: 30446012
Altech Corp: 2847.0 FID1418
American Electrical: 11183025
Eclipse: 701-019
Greenlee: 173/BL
McMaster-Carr: 7950K29
Panduit: FSD80-18-D
Phoenix Contact: 3200580
Thomas Betts: F2037
Tyco AMP: F2037
Weidmuller: 9019180000
Wieland: 06.600.2627.0
ZF: V3AE0054
