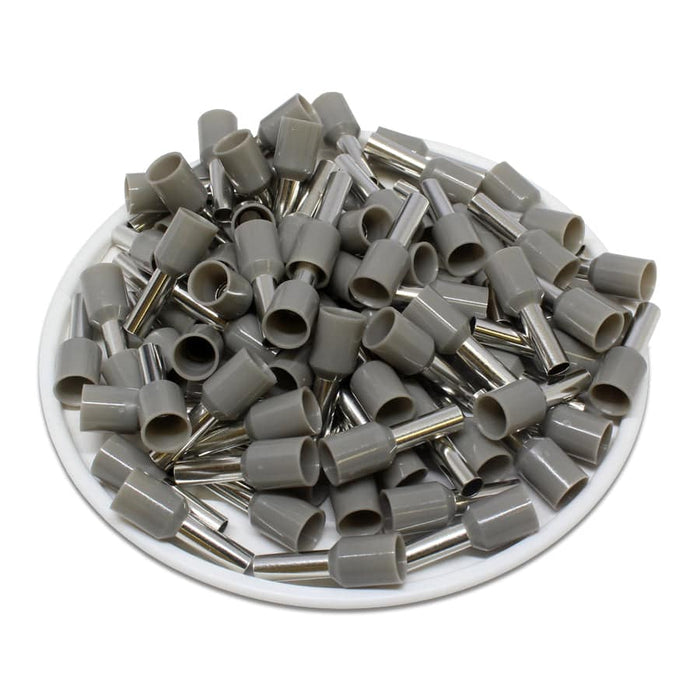

AW40009 - 12 AWG (9mm Pin) Insulated Ferrules - Gray
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
|DIMENSIONS AND FEATURES|
|Wire Size:||12 AWG||UL Approved:||Yes|
|L1:||16.4mm (.646")||RoHS Compliant:||Yes|

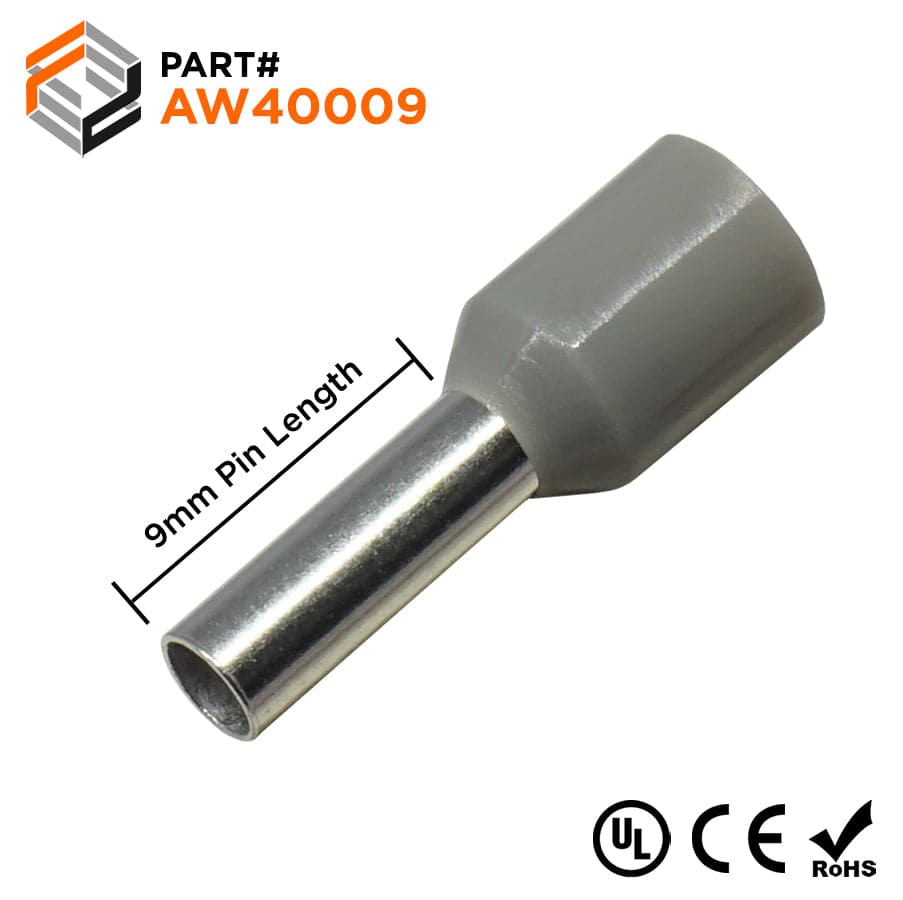

|L2:||9.0mm (.35")||Max Electrical Rating:||105°C (221°F) - 600 Volts|
|D:||3.3mm (.13")||Max Electrical Current:||35A|
|D1:||2.8mm (.11")||Material:||Tin Plated Copper|
Cross Reference Parts:
How to Crimp a Wire Ferrule?
