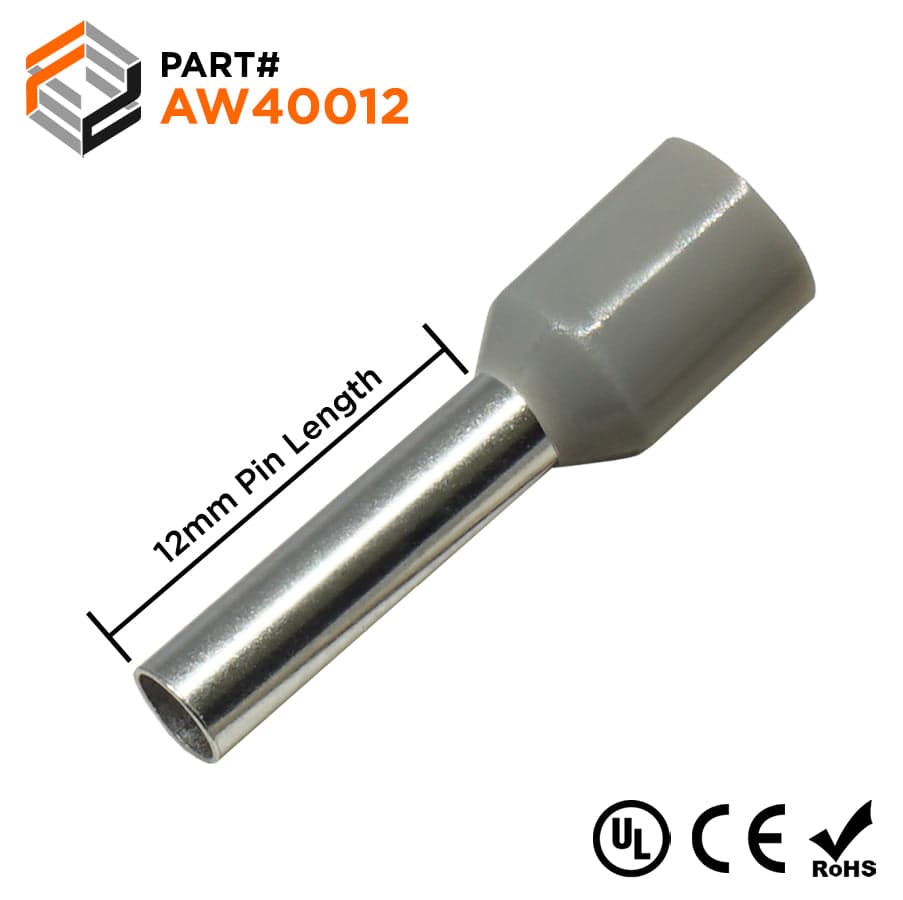

AW40012 - 12 AWG (12mm Pin) Insulated Ferrules - Gray

Original price $0.00 - Original price $0.00
Original price $0.00
$0.00 - $16.94
Current price $16.94
SKU AW40012
in stock, ready to be shipped
Out of stock
Pack Quantity: 500 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 12 AWG
Color: Gray
Material: Tin Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Electrical Current: 35A
L1: 19.5mm (0.77")
L2: 12.0mm (0.47")
D: 3.3mm (0.13")
D1: 2.8mm (0.11")
D2: 4.8mm (0.19")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

ABB: XUSD01875
Altech Corp: 2849.0 2402.0 FID1212
American Electrical: 11122040 - 11121040
Automation Direct: BM-005081 V39AE000056
Burndy: BM-005081
Elecdirect: FER-12-12D
Greenlee: 174/GRH
McMaster-Carr: 7950K62 7950K32
Panduit: FSD81-12-C
Phoenix Contact: 3200959
Power Phase - Fastenal: 0749620

SPC Technology: SPC4524 84N2058
Thomas Betts: F2039
Tyco AMP: 1-966067-9
WAGO: 216-267
Weidmuller: 9019200000
ZF: V3AE0056 V39AE000056


Click to view product spec sheet:
